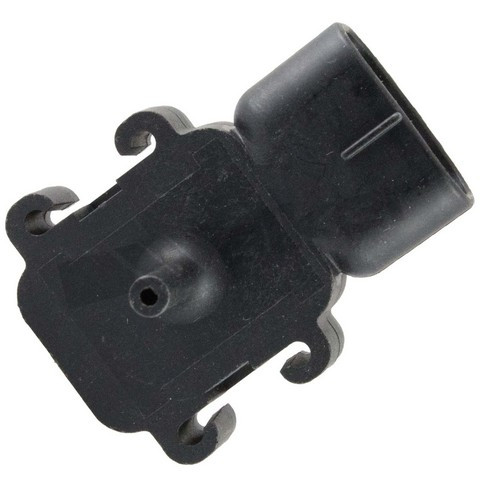

Keep your engine management system reading intake pressure accurately with the Walker Products Manifold Absolute Pressure Sensor 225-1018 (also written 2251018). This MAP sensor is a direct-fit replacement for the 1998-2000 Chevrolet Metro (L3-1.0L), 1995-1997 Geo Metro (L3-1.0L, L4-1.3L), 1993-1997 Geo Prizm (L4-1.6L, L4-1.8L), 1995-2000 Suzuki Esteem (L4-1.6L), and 1995-1997 Suzuki Swift (L4-1.3L). A MAP sensor measures pressure within the intake manifold through a changing voltage signal and sends that data to the engine control module, which uses it with other inputs to calculate engine load and adjust fuel injection and ignition timing.
OE-replacement design: engineered to meet OE specifications for electrical output, pressure range, and connector fit for seamless integration with the vehicle's existing system.
Accurate pressure sensing: provides precise measurement of manifold pressure to help the ECM manage the air-fuel ratio.
Built to endure the engine bay: constructed to withstand high temperatures, vibration, and intake air contaminants, and tested for accuracy and responsiveness.
Connector: female rectangular connector with three male blade terminals for a straightforward, factory-style connection.
If a failed MAP sensor is the cause of drivability issues or a check engine code, this unit replaces it. Country of origin: China.
Frequently Asked Questions
What does this MAP sensor do?
It measures pressure inside the intake manifold and sends that data as a changing voltage to the engine control module, which uses it to help calculate fuel delivery and ignition timing.
Which vehicles does the 225-1018 fit?
It's a direct-fit replacement for the 1998-2000 Chevrolet Metro, 1995-1997 Geo Metro, 1993-1997 Geo Prizm, 1995-2000 Suzuki Esteem, and 1995-1997 Suzuki Swift. See the Buyer's Guide tab for engine details.
What type of connector does it have?
It uses a female rectangular connector with three male blade terminals for a factory-style electrical connection.
What are signs this MAP sensor may need replacing?
Drivability complaints and a check engine light with related trouble codes can be signs. Diagnose the cause first, since these symptoms can have other sources.
Is this an OE-replacement part?
Yes. It is engineered to meet OE specifications for electrical output, pressure range, and connector fit for integration with the vehicle's existing system.
