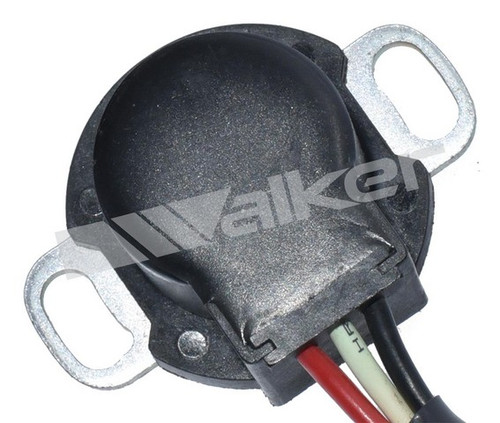

Walker Products 200-1309 throttle position sensor for the 1989-1993 Mazda B2200 4-cylinder 2.2L detects throttle blade position and reports it to the engine control module. The module uses that signal to manage fuel delivery, ignition timing and transmission shifting.
- Tested for signal integrity, temperature resistance and vibration durability
- Resists electromagnetic interference

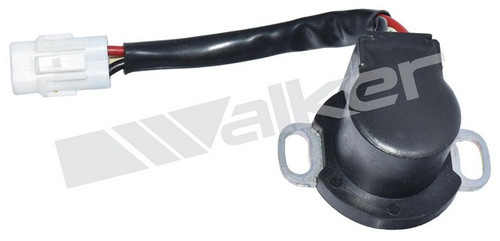

- Triangle-shaped male connector with 3 female blade terminals
- Mounts on the throttle body
Quick facts
- Part: Walker Products 200-1309 throttle position sensor
- Fits: 1989-1993 Mazda B2200 4-cylinder 2.2L
- Material: Plastic
- Condition: New
Poor acceleration, rough idle, stalling or throttle-related diagnostic codes can be signs of a failing throttle position sensor. A vacuum leak can also make an engine idle rough, so these signs alone do not prove the sensor is at fault.
Fits
This sensor is a direct-fit replacement for the 1989-1993 Mazda B2200 4-cylinder 2.2L, with no modifications required.
Specifications
Fit and size
- Quantity per vehicle: 1
- Terminal quantity: 3
- Wire quantity: 3
- Connector quantity: 1
- Wiring harness length: 83 mm
Build and materials
- Material: Plastic
- Terminal type: Blade
- Terminal gender: Female
- Connector: male, triangle shape
- Adjustable: yes
- Condition: New
- Country of origin: Taiwan
In the box
One throttle position sensor. This listing holds one sensor, and the 1989-1993 Mazda B2200 4-cylinder 2.2L takes one. The mounting bracket and mounting hardware are not included, so plan on new hardware rather than reusing the old.
Interchange: 141-7090
5S5226 · EC3232 · SS10418 · F2G813SL0 · 1TP1210 · TH0174 · TH222 · TPS4100
This part cross-references / interchanges with the following part numbers:
5S5226, EC3232, SS10418, 141-7090, F2G813SL0, 1TP1210, TH0174, TH222, TPS4100
Frequently Asked Questions
Is the Walker Products 200-1309 throttle position sensor right for the 1989-1993 Mazda B2200 4-cylinder 2.2L?
Yes. Walker Products 200-1309 is a direct-fit replacement for the 1989-1993 Mazda B2200 4-cylinder 2.2L, which takes one sensor.
Does the Walker 200-1309 throttle position sensor come with a mounting bracket?
No. This listing is one sensor only; the mounting bracket and mounting hardware are not included with Walker Products 200-1309.
How many terminals does this throttle position sensor have?
It has 3 female blade terminals in one male, triangle-shaped connector. It has 3 wires and an 83 mm wiring harness.
Can a bad throttle position sensor cause stalling and rough idle?
Yes, it can. Poor acceleration, rough idle and stalling can be signs, and a shop can scan for codes and test the sensor's signal.
Is TPS4100 the same as this throttle position sensor?
Yes. TPS4100 is one of the other numbers that Walker Products 200-1309 replaces, and it is printed on the Interchange line.
