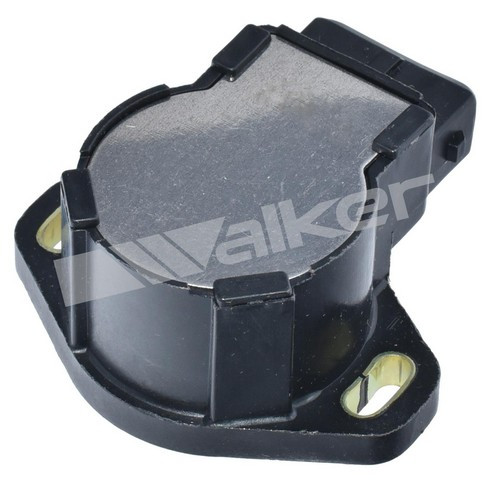

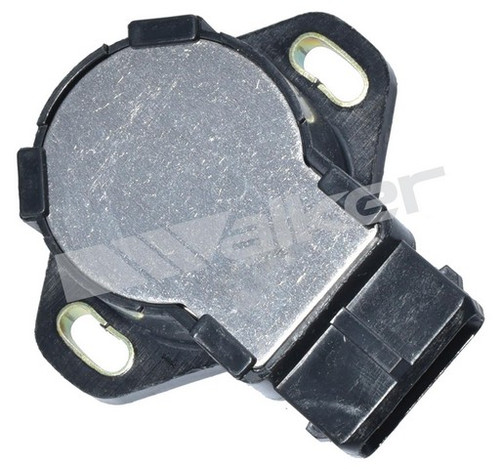

Walker Products 200-1315 throttle position sensor for the 1989-1995 Mazda MPV V6 3.0L and other vehicles reports throttle blade position to the engine control module. The computer uses that signal with its other inputs to work out how much fuel to deliver.
- Detects throttle blade position and sends it to the ECM for fuel delivery, ignition timing and transmission shifting
- Voltage signal read by the ECU, so a sensor fault can set an error code
- Tested for signal integrity, temperature resistance and vibration durability
- Built to resist electromagnetic interference
- Adjustable sensor with a plastic body that mounts on the throttle body
Quick facts
- Part: Walker Products 200-1315 throttle position sensor
- Fits: 1989-1995 Mazda MPV V6 3.0L and other vehicles
- Material: Plastic
- Condition: New
Poor acceleration, rough idle, stalling or a throttle-related code can point to this sensor, though those symptoms have other possible sources too. With the engine off, look at the connector and the blade terminals for corrosion, bent blades or a loose fit before you replace anything. The engine takes one sensor, on the throttle body.
Fits
This sensor fits the 1989-1995 Mazda MPV V6 3.0L and the 1990-1991 Mazda 929 V6 3.0L. It is engineered to meet or exceed OE standards for fit, form, function and performance, as a direct-fit replacement for these vehicles with no modifications required.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: throttle body mounted
- Terminal quantity: 3
- Connector quantity: 1
Build and materials
- Material: plastic
- Terminal type: blade, male terminals
- Connector: rectangle shape, female
- Adjustable: yes
- Condition: new
- Country of origin: China
In the box
One throttle position sensor. The mounting bracket and mounting hardware are not included, so plan on new fasteners rather than reusing the old ones.
Interchange: 213-2702 · 141-736
5S5230 · EC3188 · EC3321 · SS10409 · JE1518911 · 1TP1157 · TH0177 · TH202 · TPS4097
This part cross-references / interchanges with the following part numbers:
213-2702, 5S5230, EC3188, EC3321, SS10409, 141-736, JE1518911, 1TP1157, TH0177, TH202, TPS4097
Frequently Asked Questions
Is the Walker Products 200-1315 the right throttle position sensor for a 1989-1995 Mazda MPV V6 3.0L?
Yes. Walker Products 200-1315 fits the 1989-1995 Mazda MPV V6 3.0L. It also fits the 1990-1991 Mazda 929 V6 3.0L.
Does the 200-1315 throttle position sensor come with a mounting bracket or bolts?
No. Walker Products 200-1315 is one sensor only; the mounting bracket and mounting hardware are not included.
How many terminals does this throttle position sensor have?

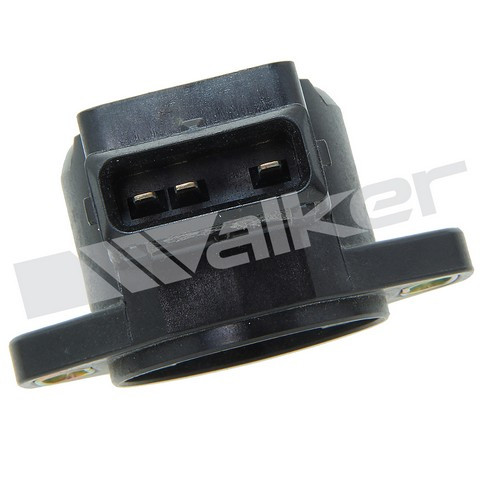

It has three blade terminals and one rectangular connector.
Which symptoms can point to a worn throttle position sensor?
Poor acceleration, rough idle, stalling or a throttle-related diagnostic code can come from this sensor. A bad signal is also read by the ECU, which can set an error code.
Is this Walker throttle position sensor adjustable, and what is it made of?
Yes, it is adjustable and mounts on the throttle body. The body material is plastic.
