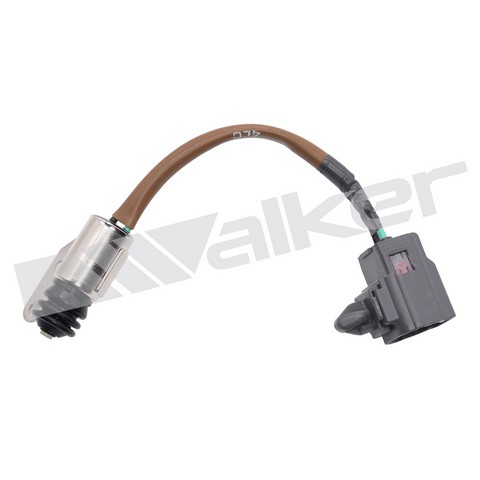

Walker Products 200-1394 throttle position sensor for the 2006-2008 Mazda MX-5 Miata 4-cylinder 2.0L measures throttle position through changing voltage and sends it to the onboard computer. The computer uses this and other inputs to calculate the correct amount of fuel to deliver.
- Sends throttle blade position to the engine control module, which also uses it for ignition timing and transmission shifting
- Tested for signal integrity, temperature resistance and vibration durability
- Resists electromagnetic interference

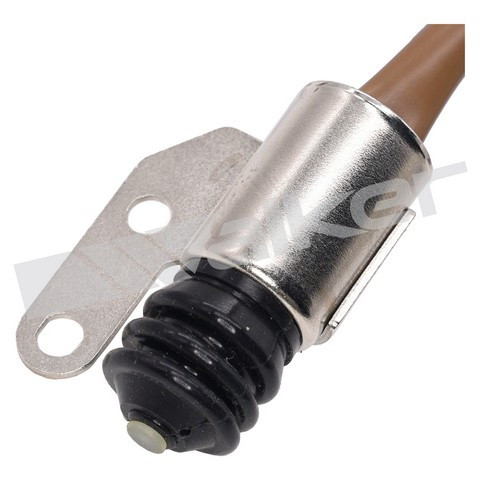

- Mounting bracket included
Quick facts
- Part: Walker Products 200-1394 throttle position sensor
- Fits: the 2006-2008 Mazda MX-5 Miata 4-cylinder 2.0L
- Material: plastic and metal
- Condition: New
A failing throttle position sensor can show up as poor acceleration, a rough idle, stalling or throttle-related codes. Before you replace it, rule out a damaged connector or wiring and other sources of those signs; a shop can read the stored codes to narrow it down.
Fits
This sensor is a direct-fit replacement for the 2006-2008 Mazda MX-5 Miata 4-cylinder 2.0L, which takes one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: throttle body mounted
- Terminals: 2, blade type
- Connector: 1, rectangular
- Wires: 2
- Wiring harness length: 104 mm
Build and materials
- Material: plastic and metal
- Adjustable: no
- Condition: New
- Country of origin: Japan
In the box
One throttle position sensor. Mounting hardware is not included, so plan on new fasteners.
Interchange: 5S12682 · TH0005 · TPS4269
Frequently Asked Questions
Is the Walker Products 200-1394 throttle position sensor right for the 2006-2008 Mazda MX-5 Miata 4-cylinder 2.0L?
Yes. Walker Products 200-1394 is a direct-fit replacement for the 2006-2008 Mazda MX-5 Miata 4-cylinder 2.0L, which takes one sensor.
Does this throttle position sensor come with mounting bolts?
No. It comes with its mounting bracket, but mounting hardware is not included, so have new fasteners ready.

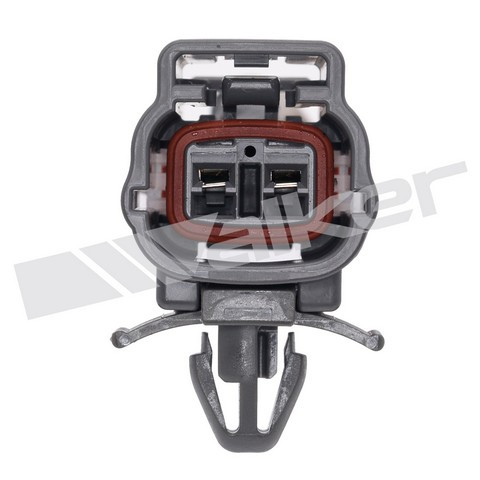

What kind of connector does the Walker Products 200-1394 use?
Walker Products 200-1394 has one rectangular connector with two blade terminals and two wires. The wiring harness is 104 mm long.
Will a bad throttle position sensor set a check engine code?
It can. A malfunctioning sensor can trigger error codes, and a shop can read them to see whether the sensor is the source.
Does Walker Products 200-1394 replace TPS4269?
Yes. TPS4269 is listed as an interchange number for Walker Products 200-1394.
