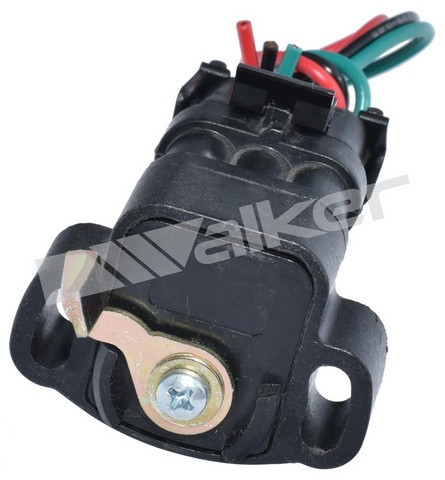

Walker Products 200-91034 throttle position sensor for the 1981-1984 Cadillac Fleetwood V8 6.0L and other vehicles measures throttle position through changing voltage and sends it to the onboard computer. The computer uses this and other inputs to work out how much fuel to deliver.
- Full service kit with a mating connector, pigtail, butt splices and heatshrink for a watertight connection
- Detects throttle blade position for the engine control module, which uses it for fuel delivery, ignition timing and transmission shifting
- Tested for signal integrity, temperature resistance and vibration durability
- Built to resist electromagnetic interference
- Voltage signal the ECU reads can set error codes when the sensor malfunctions
Quick facts
- Part: Walker Products 200-91034 throttle position sensor
- Fits: 1981-1984 Cadillac Fleetwood V8 6.0L and other vehicles
- Material: Plastic
- Condition: New
Poor acceleration, a rough idle, stalling or a throttle-related code can mean the sensor is failing. Before you replace it, rule out a dirty throttle body, a damaged connector or a vacuum leak, since those faults can produce similar symptoms.
Fits
The vehicles it fits include the 1981-1984 Cadillac Fleetwood V8 6.0L, the 1981 Cadillac DeVille V8 6.0L and the 1981 Cadillac Eldorado V8 6.0L. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting: throttle body mounted
- Adjustable: Yes
- Terminal quantity: 3
- Connector quantity: 1
- Connector shape: Oblong
Build and materials
- Type: full service kit
- Material: Plastic
- Terminal type: Bullet
- Connector gender: Female
- Terminal gender: Male and female
- Condition: New
- Country of origin: United States
In the box
One throttle position sensor with mounting hardware and the connector kit. A mounting bracket is not included. This listing is one sensor, and one is needed per vehicle.
Interchange: 213-890 · 141-413
5S5060 · EC3333 · TPS122DG · 17067979 · TH23 · TPS122
This part cross-references / interchanges with the following part numbers:
213-890, 5S5060, EC3333, TPS122DG, 17067979, 141-413, TH23, TPS122
Frequently Asked Questions
Is this throttle position sensor the right one for the 1981 Cadillac DeVille V8 6.0L?
Yes, Walker Products 200-91034 fits the 1981 Cadillac DeVille V8 6.0L and the 1981-1984 Cadillac Fleetwood V8 6.0L; for other models, check the "Vehicles it fits" section.
Does this throttle position sensor come with a connector?
Yes, Walker Products 200-91034 is a full service kit with a mating connector, pigtail, butt splices and heatshrink, plus mounting hardware; a mounting bracket is not included.
How many terminals does this throttle position sensor have?

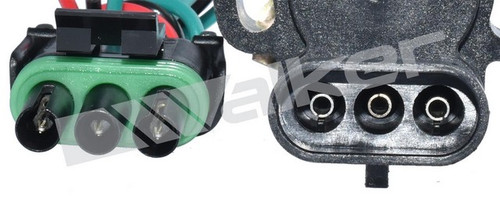

This throttle position sensor has 3 bullet-type terminals and one oblong connector, which is female. The terminals are male and female, and the material is plastic.
Can a bad throttle position sensor set a check engine code?
Yes, the ECU reads the sensor's voltage signal, so a malfunctioning sensor can trigger error codes, and a shop can read the codes and test the sensor.
Does Walker Products 200-91034 replace the TPS122 sensor?
Yes, TPS122 is one of the numbers this Walker Products sensor replaces; the other numbers are on the Interchange line.
