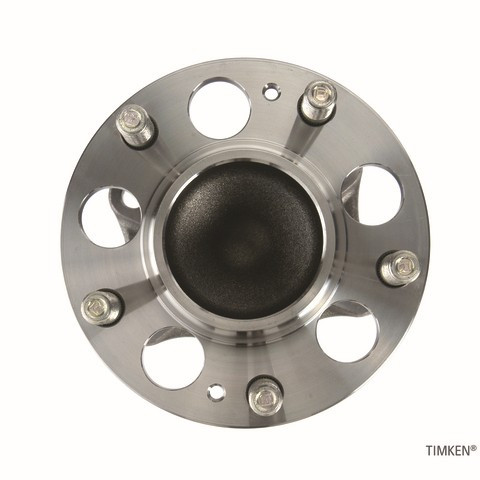

Timken HA590455 rear wheel bearing and hub assembly for the 2011-2016 Hyundai Elantra and other vehicles carries the rear wheel on the axle and lets it spin. This Timken wheel bearing unit comes preset, pre-greased and pre-sealed.
- Tests control the design, materials and manufacturing process of each hub bearing assembly
- Low runout reduces noise and vibration
- Seal with reinforced outer case, ribbed rubber inner diameter and contamination exclusion system; vent holes prevent installation damage
- Bearings with precision profiles, uniform internal geometry and enhanced surface finishes for higher load carrying capacity and longer bearing life
Quick facts
- Part: Timken HA590455 wheel bearing and hub assembly
- Fits: 2011-2016 Hyundai Elantra and other vehicles
- Position: Rear
- Condition: New
A humming or growling noise from the rear that changes with speed, vibration, or looseness at the wheel can mean the bearing is worn. Tires and brakes can cause similar signs, so when the rear wheels are off for a brake or tire service, look for grease or rust around the hub seal, and have a shop test the bearing before you replace it.
Fits
This assembly is listed for a wide range of Hyundai and Kia models, led by the 2011-2016 Hyundai Elantra, the 2014-2018 Kia Forte and the 2014-2018 Kia FORTE5. Plan to replace both rear sides together: this listing is one assembly, and the rear axle takes two.
Specifications
Fit and size
- Position: Rear
- Quantity per vehicle: 2
- Bolt circle diameter: 108.28 mm (4.263 in)
- Flange bolt holes: 4
- Wheel studs: 5
- Flange diameter: 137.59 mm (5.471 in)
- Flange offset: 59.00 mm (2.323 in)
- Brake pilot diameter: 66.93 mm (2.635 in)
- Hub pilot diameter: 72.95 mm (2.872 in)
- Wheel pilot diameter: 57.28 mm (2.255 in)
Build and materials
- Construction: preset, pre-greased and pre-sealed hub unit
- Drive type: Non-driven
- Condition: New
Interchange: WE60921 · 512492 · BR930851
This part cross-references / interchanges with the following part numbers:
WE60921, 512492, BR930851
Frequently Asked Questions
Will this fit as a 2013 Hyundai Elantra wheel bearing within the 2011-2016 Hyundai Elantra years?
Yes. Timken HA590455 is a rear wheel bearing and hub assembly for the 2011-2016 Hyundai Elantra, which includes 2013. If your car is another model, look it up in the "Vehicles it fits" section.
What are the bolt circle and pilot sizes on this Timken wheel bearing and hub assembly?
Timken HA590455 has a bolt circle diameter of 108.28 mm (4.263 in), a 66.93 mm brake pilot and a 72.95 mm hub pilot. The flange has 4 bolt holes and the hub has 5 wheel studs.
Do Timken wheel hubs like this one have vent holes in the seal?
Yes. The seal has vent holes that prevent installation damage, along with a reinforced outer case, a ribbed rubber inner diameter and a contamination exclusion system.
Could a humming rear wheel mean this bearing needs replacing?
Yes, it can: a hum or growl that changes with speed, vibration or play at the wheel can come from a worn bearing, though other parts may produce similar symptoms, so have a shop test it promptly.
Is this rear hub driven or non-driven?
This rear hub is non-driven: Timken HA590455 has no splines.
