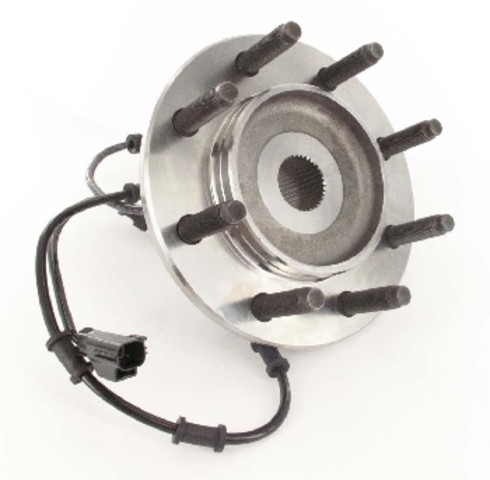

Front Wheel Bearing and Hub Assembly for 2003-2005 Dodge Ram 2500 & More - SKF BR930502

Be the first to review this product
$221.99
MPN: BR930502
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
SKF Wheel Bearing and Hub Assembly P/N:BR930502
SKF Wheel Bearing and Hub Assembly P/N:BR930502
$221.99

SKF BR930502 front wheel bearing and hub assembly for the 2003-2005 Dodge Ram 2500 and other vehicles holds the wheel to the axle and lets it turn, as an X-Tracker Hybrid Hub.

  • Asymmetrical bearing design with tapered roller bearings on the inboard side and ball bearings on the outboard side
  • Blends the benefits of ball bearing and tapered roller bearing hubs for better braking and handling while improving steering accuracy
  • Made from heat-treated high carbon steel for strength
  • Sealed for life design
  • Manufactured to precision specifications for problem-free operation

A worn front wheel bearing can show up as a humming or growling noise that changes with speed, or as vibration through the wheel. Before you replace this assembly, rule out the tires, brake parts and suspension components, because a fault in any of them can make similar noise or vibration. Replace both front assemblies together; this listing is for one of them.

It is a direct-fit replacement for the 2003-2005 Dodge Ram 2500 and the 2003-2005 Dodge Ram 3500.

Specifications

Fit and size

  • Position: front
  • Quantity per vehicle: 2
  • Flange offset: 2.150 in
  • Flange diameter: 8.046 in
  • Hub pilot diameter: 4.491 in
  • Brake pilot diameter: 4.822 in
  • Wheel pilot diameter: 4.769 in
  • Bolt circle diameter: 4.377 in

Build and materials

  • Drive: 4WD
  • Material: heat-treated high carbon steel
  • Design: sealed for life

In the box

One wheel bearing and hub assembly. The vehicles it fits take two in total.

Interchange: 930-636 · 799-0168
DL515061 · WE60976 · R515061 · 5103507AA · 102005 · FW761 · 515061 · 27102005 · 715061 · HA590032

This part cross-references / interchanges with the following part numbers:

930-636, DL515061, WE60976, R515061, 5103507AA, 102005, FW761, 799-0168, 515061, 27102005, BR930502, 715061, HA590032

Frequently Asked Questions

Is the SKF BR930502 a wheel bearing and wheel hub assembly in one for the 2003-2005 Dodge Ram 2500?

Yes. The SKF BR930502 is a front wheel bearing and hub assembly for the 2003-2005 Dodge Ram 2500 and the 2003-2005 Dodge Ram 3500, so the bearing and hub come as one unit.

Are SKF wheel hubs like the BR930502 sealed for life?

Yes. The SKF BR930502 has a sealed for life design.

What kind of SKF wheel bearing is built into this hub assembly?

This front hub assembly is an X-Tracker Hybrid with an asymmetrical design: tapered roller bearings sit on the inboard side and ball bearings on the outboard side.

What size are the flange and pilots on this SKF wheel bearing and hub assembly?

On the SKF BR930502, the flange diameter is 8.046 in, the hub pilot 4.491 in, the brake pilot 4.822 in and the wheel pilot 4.769 in. The bolt circle is 4.377 in and the flange offset is 2.150 in.

How can I tell if a front wheel hub bearing is going bad?

A humming or growling noise that changes with road speed, or vibration felt through the wheel, can mean a worn front wheel bearing. Have a shop inspect it promptly if you notice either.
