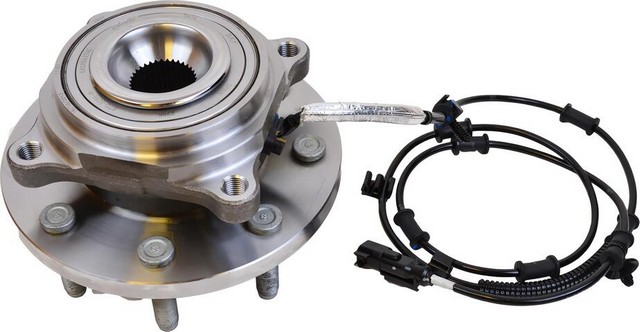

SKF BR930553 front wheel bearing and hub assembly for the 2014-2018 Ram 2500 and other vehicles holds the front wheel and lets it turn on the axle. It replaces a worn assembly as one piece, with the bearing and hub together.
- Made to precision specifications for problem-free operation
- Sealed-for-life design
- Heat-treated high-carbon steel for strength
Quick facts
- Part: SKF BR930553 wheel bearing and hub assembly
- Fits: 2014-2018 Ram 2500 and other vehicles
- Position: Front
- Material: Heat treated high carbon steel
- Condition: New
A humming or growling noise that changes with speed, or looseness at the wheel, can mean the bearing is wearing out. Tire, brake and suspension problems can sound alike, so find the cause before replacing the assembly. A shop can check for play with the wheel lifted.
Fits
This wheel bearing and hub assembly fits the 2014-2018 Ram 2500 and the 2013-2018 Ram 3500. These trucks take two, one on each side of the front axle. This listing is one assembly, and the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Flange offset: 2.219 in
- Flange diameter: 8.071 in
- Flange shape: Rectangular
- Hub pilot diameter: 4.724 in
- Brake pilot diameter: 4.839 in
- Wheel pilot diameter: 4.765 in
- Bolt circle diameter: 6.496 in
Build and materials
- Design: Sealed for life
- Material: Heat treated high carbon steel
- Condition: New
Interchange: 94-556395 · 720-3210 · BTD-5351
DL515162 · DLG515162 · 68185437AC · 68185437AD · 515162 · HA590628
This part cross-references / interchanges with the following part numbers:
DL515162, DLG515162, 94-556395, 68185437AC, 68185437AD, 720-3210, BR930553, 515162, BTD-5351, HA590628
Frequently Asked Questions
Is this a Ram 2500 wheel bearing for the 2014-2018 model years?
Yes. SKF BR930553 is a front wheel bearing and hub assembly for the 2014-2018 Ram 2500, and the 2013-2018 Ram 3500 is covered as well.
Does this work as a Ram 3500 wheel bearing for the 2013-2018 trucks?
Yes. This front wheel bearing and hub assembly fits the 2013-2018 Ram 3500, one on each side of the front axle.
Is this SKF wheel bearing sealed for life?
Yes. The design is sealed for life, and this assembly is made from heat-treated high-carbon steel.
What are the pilot and bolt circle sizes on SKF wheel hubs like this one?
SKF BR930553 has a 4.724 in hub pilot, a 4.839 in brake pilot, a 4.765 in wheel pilot and a 6.496 in bolt circle diameter.
Does SKF BR930553 interchange with HA590628?
Yes. HA590628 is listed as an interchange number for SKF BR930553, along with 515162 and 68185437AC.
