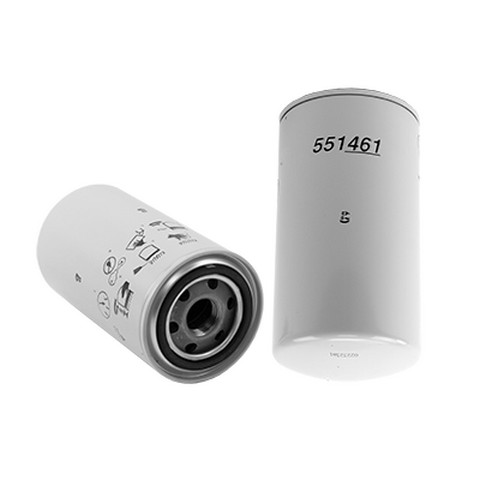

Wix 51461 spin-on hydraulic filter for the Jacobsen LF-3800 4WD and other equipment is a heavy-duty filter that cleans the fluid in the machine's hydraulic circuit.
- Media is matched to the application, and this filter's media is rated 32 micron nominal.
- High-strength, corrosion-resistant materials, center tube and end caps.
- Sealing components that keep the filter leak resistant in all types of operating conditions.
- Recommended for OEM hydraulic filter change intervals.
A clogged filter can show up as sluggish hydraulic response, and a dented housing or a displaced gasket can let it leak. If the filter is the cause, this one replaces it. Before you buy, look over the old filter with the machine off and cool for dents, a displaced gasket or leaks.
The Jacobsen LF-3800 4WD, Jacobsen LF-3400 4WD and Case / Case-IH 4140 each take one filter, and it fits many more Jacobsen and Ransomes mowers and turf equipment, Ammann, Hydra-Mac, IHC and Komatsu loaders, and Case / Case-IH wheel tractors. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Height: 177.5 mm (6.987 in)
- Outer diameter: 93.3 mm (3.674 in)
- Thread size: 1-12
- Quantity per machine: 1
Build and materials
- Style: spin-on hydraulic filter, heavy duty (HD)
- Media: enhanced cellulose
- Anti-drain-back valve: none
- Bypass valve: none
- Country of origin: United States
Interchange: 92461 · BT365 · 85461 · 522972 · PH7500 · LF3571 · 3408305 · 73321C1 · 557772 · LFH4967 · LFP5776 · 1461 · 1520901D20 · 15209J6501 · BF20901D20 · FL20901D20 · WGH6122
This part cross-references / interchanges with the following part numbers:
92461, BT365, 85461, 522972, PH7500, LF3571, 3408305, 73321C1, 557772, LFH4967, LFP5776, 1461, 1520901D20, 15209J6501, BF20901D20, FL20901D20, 51461, WGH6122
Frequently Asked Questions
Does the Wix 51461 fit the Jacobsen LF-3800 4WD or the Jacobsen LF-3400 4WD?
Yes. Wix 51461 fits both the Jacobsen LF-3800 4WD and the Jacobsen LF-3400 4WD, one filter per machine. For other machines, check the "Vehicles it fits" section.
What thread size and dimensions does the Wix 51461 spin-on hydraulic filter have?
This Wix 51461 has a 1-12 thread, stands 177.5 mm (6.987 in) tall and measures 93.3 mm (3.674 in) across the outer diameter.
Is the 51461 one of the Wix hydraulic oil filters or an engine oil filter?
Wix 51461 is a spin-on hydraulic filter for equipment, not an engine oil filter. Its cross-reference list includes both hydraulic and lube filter numbers.
Does this spin-on hydraulic filter have a bypass valve or an anti-drain-back valve?
No. This filter has neither an anti-drain-back valve nor a bypass valve.
How often should this hydraulic filter be changed?
Follow the machine's OEM hydraulic filter change interval. Wix HD hydraulic filters are recommended for those intervals.
