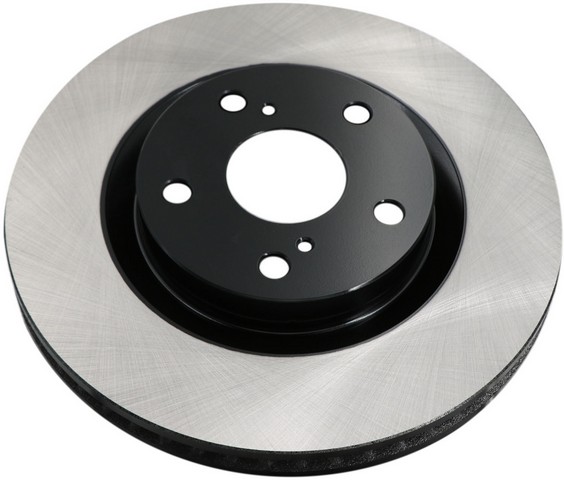

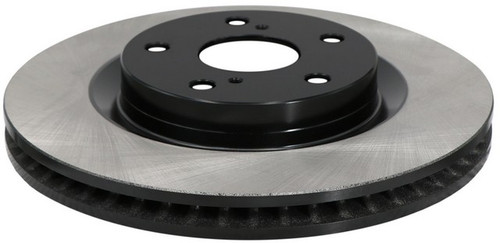

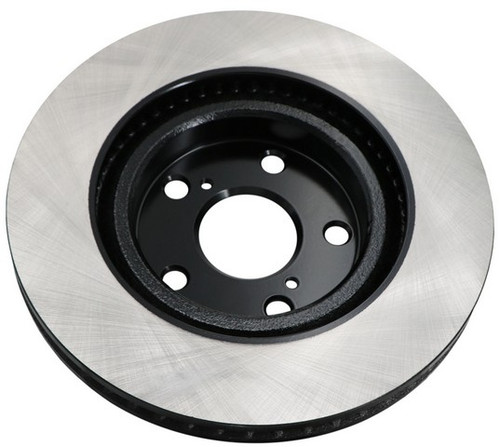

ADVICS A6F027U front brake rotor for the 2009-2013 Toyota Matrix 4-cylinder 2.4L and other vehicles gives the brake pads a vented surface to clamp against. Like other ADVICS brake rotors, this disc brake rotor is built to OEM weight, vane count and air gap.
- ADVICS OE Replacement line rotor with a smooth, non-directional surface finish
- High carbon material and vented construction let air flow freely through the rotor
- High carbon metallurgy maintains thermal stability and reduces opportunities for warping
- Corrosion protection coating
- 296.0 mm outside diameter and 28.0 mm nominal thickness
Quick facts
- Part: ADVICS A6F027U brake rotor
- Also called: disc brake rotor
- Fits: 2009-2013 Toyota Matrix 4-cylinder 2.4L and other vehicles
- Position: Front
- Material: High Carbon
- Condition: New
Worn pads, a sticking caliper or a wheel bearing problem can also sit behind a pulsing brake pedal, grinding or vibration while braking, so find the cause before you buy a rotor. If a worn rotor is the cause, this one replaces it.
Fits
It fits the 2009-2013 Toyota Matrix 4-cylinder 2.4L and the 2009-2010 Pontiac Vibe 4-cylinder 2.4L. This listing is one front rotor; the other side of that axle is normally replaced at the same time.
Specifications
Fit and size
- Position: Front
- Quantity per vehicle: 2
- Outside diameter: 296.0 mm (11.654 in)
- Center hole diameter: 55 mm
- Bolt circle: 114.3 mm (4.5 in), 5 lug holes
- Overall height: 49.3 mm (1.941 in)
- Nominal thickness: 28.0 mm (1.102 in)
- Discard thickness: 25.0 mm (0.984 in)
Build and materials
- Type: Vented
- Surface: Smooth, non-directional finish
- Material: High Carbon
- Coating: corrosion protection coating
- ABS tone ring: not included
- Condition: New
- Country of origin: China
In the box
One front brake rotor. Each vehicle takes two, one per front wheel.
Interchange: 120.44146 · 604-76080
31551 · C31434 · 900340 · 980781FZN · 4351202250
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
31551, C31434, 120.44146, 604-76080, A6F027U, 900340, 980781FZN, 4351202250
Frequently Asked Questions
Do these Matrix brake rotors fit the 2009-2013 Toyota Matrix 4-cylinder 2.4L?
Yes. ADVICS A6F027U is a front rotor for the 2009-2013 Toyota Matrix 4-cylinder 2.4L, and it also fits the 2009-2010 Pontiac Vibe 4-cylinder 2.4L.
What is the discard thickness of the ADVICS A6F027U rotor?
The discard thickness of the ADVICS A6F027U is 25.0 mm (0.984 in), against a nominal thickness of 28.0 mm (1.102 in). A rotor measuring at or below the discard value is due for replacement.
Is this front brake rotor vented or solid?
Vented. This front rotor is made of high carbon with a smooth, non-directional surface, a 296.0 mm outside diameter and five lug holes on a 114.3 mm bolt circle.
Does the ADVICS A6F027U come with an ABS tone ring?
No. The ABS tone ring is not included. The ADVICS A6F027U listing is one rotor, and the vehicle takes two, one per front wheel.
Does this high carbon rotor have a corrosion protection coating?
Yes. The rotor has a corrosion protection coating, and its high carbon metallurgy is used to keep it thermally stable and reduce opportunities for warping.
