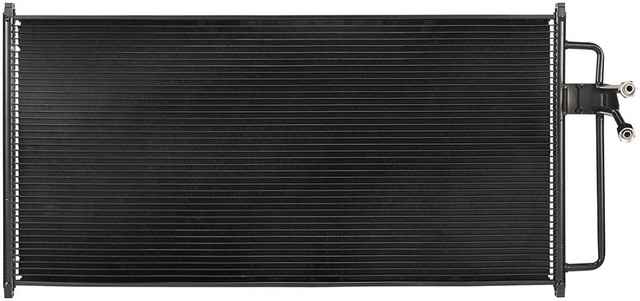

Help your air conditioning system shed heat with the Agility Autoparts A/C Condenser 7014678, a parallel-flow unit that draws heat out of the refrigerant so it can condense back to a liquid. It fits many vehicles, among them the 1997-2003 Ford F-150, 1997-2003 Ford F-250 and 2000-2003 Ford F-350. It is a direct-fit replacement for the listed applications; see the Buyer's Guide tab for the full list.
- Parallel-flow aluminum core: the core measures 34.625 in long, 16.875 in high and 0.875 in thick.
- Thermal design: uses mini-micro extruded tube technology and enhanced design features aimed at increased thermal performance.
- Drop-in fit: Agility certifies the condenser to match or surpass OE specifications, and it is ready to install right out of the box.
- Quality checked: produced under ISO TS16949 quality systems, with every condenser leak tested.
- Connections: #8 female O-ring inlet and outlet fittings.
The listed applications use one condenser. Warm air from the vents, a refrigerant leak, or damaged or corroded fins can be signs that a condenser may need replacing. If a failed condenser is the cause, this unit replaces it. Have the system diagnosed first, since other A/C components can cause similar symptoms. Refrigerant service requires proper recovery and recharge equipment, so follow the vehicle service information. Part finish and color may vary. Country of origin: China.
Interchange: 24-31069 · 31-4678 · 7-4678
2431069 · 314678 · 74678 · AF634 · P40083P · 4879 · AC4678 · 4678 · F65H19710AE · F65H19712A · F65HAB · F65HAE · F65Z19712A · F65Z19712AB · F65ZAB · F6SZAB · F75ZAB · AUC4678 · 40083 · 640083 · 1020083 · 1158
This part cross-references / interchanges with the following part numbers:
AF634, P40083P, 4879, AC4678, 4678, F65H19710AE, F65H19712A, F65HAB, F65HAE, F65Z19712A, F65Z19712AB, F65ZAB, F6SZAB, F75ZAB, AUC4678, 40083, 24-31069, 640083, 31-4678, 7-4678, 1020083, 1158
