Agility Autoparts Electric Fuel Pump 4020108

Agility Autoparts Electric Fuel Pump 4020108 - view 2

Agility Autoparts Electric Fuel Pump 4020108 - view 3

Electric Fuel Pump for 1982-1994 Alfa Romeo Spider & More - Agility 4020108

Be the first to review this product

$18.99

MPN: 4020108

UPC: 887548193131

Item Package Quantity: 1

Current Stock:

Have questions?

Ask an Expert

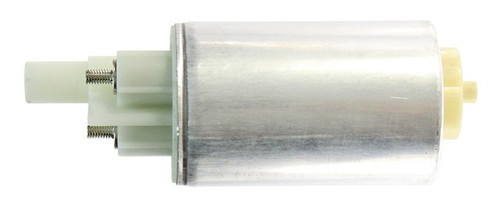

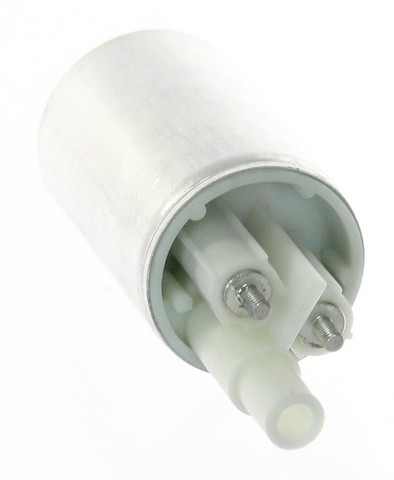

Agility Autoparts Electric Fuel Pump P/N:4020108

$18.99

Description

Move fuel from the tank toward the engine with the Agility Auto Parts Electric Fuel Pump 4020108, a 12-volt in-tank pump that is a direct-fit replacement for the listed applications. It fits many vehicles, among them the 1987-1993 Mazda B2200 (L4-2.2L), 1985-1987 Volvo 740 (L4-2.3L) and 1987-1988 Mazda B2600 (L4-2.6L). See the Buyer's Guide tab for the full list.

Controlled production: Agility engineers and manufactures its electric fuel pumps in a highly automated, dust-free environment, and states they match or surpass all OEM specifications.
Performance testing: Performance and reliability testing covers pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing.
Drop-in kit: Agility designs its pumps as drop-in replacements right out of the box, and this pump is supplied as a kit.
Specifications: 12 volts DC. Maximum flow is 35 U.S. gallons per hour and maximum pressure is 6 psi. The strainer-type inlet has a 0.750 in outside diameter, and the hose-type outlet has a 0.375 in outside diameter.

The pump mounts in the tank, draws fuel through its strainer inlet and sends it out through the outlet to supply the fuel system. Hard starting, sputtering or a loud whine from the tank can be signs the fuel pump may need replacing. If a failed pump is the cause, this unit replaces it. The listed applications use one pump. Country of origin: China.

Interchange: E8778 · P6876 · P72042 · P72137 · P76800 · FE0069 · SP1216 · USEP8237 · USEP8381 · USEP8778 · 13176714 · 13897210 · 35074368 · 7526163 · 9349671

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

E8778, P6876, P72042, P72137, P76800, FE0069, SP1216, USEP8237, USEP8381, USEP8778, 13176714, 13897210, 35074368, 7526163, 9349671

Frequently Asked Questions

What does the Agility 4020108 electric fuel pump do?

It is a 12-volt pump that mounts inside the fuel tank. It draws fuel through a strainer inlet and sends it through the outlet to supply the vehicle's fuel system.

What are the pump's specifications?

It runs on 12 volts DC, with a maximum flow of 35 U.S. gallons per hour and a maximum pressure of 6 psi. The inlet is 0.750 in OD with a strainer, and the hose-type outlet is 0.375 in OD.

Which vehicles does this fuel pump fit?

It fits many vehicles, among them the 1987-1993 Mazda B2200 (L4-2.2L), 1985-1987 Volvo 740 (L4-2.3L) and 1987-1988 Mazda B2600 (L4-2.6L). See the Buyer's Guide tab for the full list.

How is the pump tested?

Agility tests its electric fuel pumps for pressure characteristics, flow rates and electrostatic discharge, and every pump is 100% leak tested.

What are signs the fuel pump may need replacing?

Hard starting, sputtering, loss of power or a loud whine from the tank can be signs the fuel pump may need replacing. Other fuel or ignition faults cause similar symptoms, so diagnose the cause before replacing the pump.
