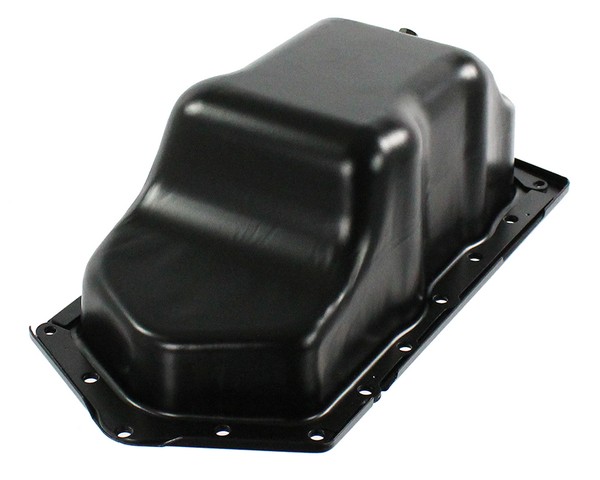

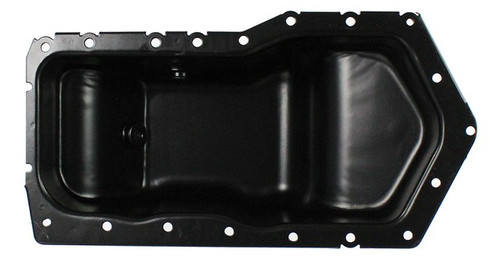

Keep your engine's oil supply contained and sealed at the bottom of the block with the Agility Auto Parts Engine Oil Pan 3310033. It drops in as a direct-fit replacement for the 1995-2002 Chevrolet Camaro and 1995-2002 Pontiac Firebird equipped with the V6-3.8L engine. The pan forms the reservoir the oil pump draws from, holding the oil charge and returning drain-back oil during operation. Agility engineers this pan to meet or exceed OEM specifications.
- Steel construction: a steel pan built to hold the engine's oil supply.
- Baffled: internal baffling helps control oil movement inside the pan to keep the pickup fed.
- Drain plug included: ships with a drain plug and an M14 x 1-1/2 drain thread size for routine oil changes.
- Windage tray: not included.
Signs the pan may need replacing include oil seepage from a dented, cracked, or corroded pan, or damage to the sealing flange or drain-plug threads. If a failed oil pan is the cause of your leak, this replaces it; diagnose the source of the leak before ordering. Country of origin: China.
Manufacturer part number 3310033.
This part cross-references / interchanges with the following part numbers:
Frequently Asked Questions
What does this oil pan do?
It bolts to the bottom of the engine and forms the reservoir that holds the engine oil charge, giving the oil pump a supply to draw from and collecting drain-back oil during operation.
What vehicles does this pan fit?
It is a direct-fit replacement for the 1995-2002 Chevrolet Camaro and 1995-2002 Pontiac Firebird with the V6-3.8L engine. See the Buyer's Guide tab to confirm your vehicle.
Is this oil pan baffled?
Yes. It has internal baffling that helps control oil movement inside the pan to help keep oil around the pickup.
Does it come with a drain plug?
Yes, a drain plug is included and the drain thread size is M14 x 1-1/2. A windage tray is not included.
How do I know if my oil pan needs replacing?
Common signs are oil seepage from a dented, cracked, or corroded pan or damaged drain-plug threads. If a failed pan is the cause of the leak, this replaces it; diagnose the source first.
