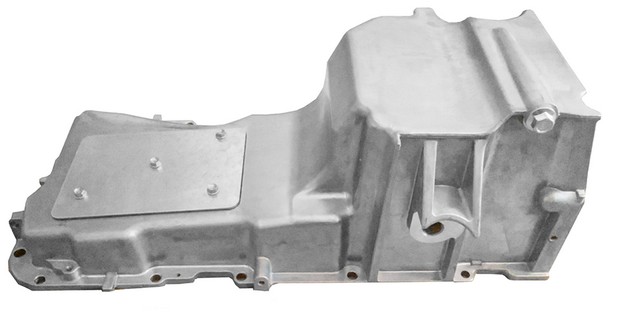

Agility Autoparts Engine Oil Pan 3310081

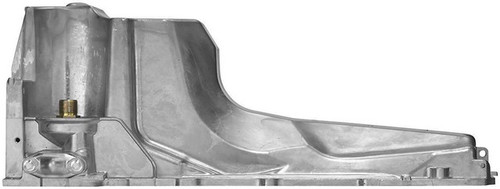

Agility Autoparts Engine Oil Pan 3310081 - view 2

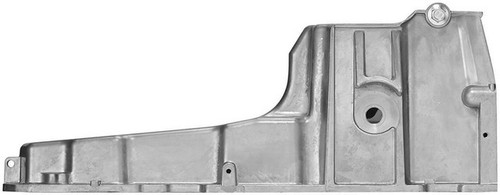

Agility Autoparts Engine Oil Pan 3310081 - view 3

Agility Autoparts Engine Oil Pan 3310081 - view 4

Agility Autoparts Engine Oil Pan P/N:3310081

Be the first to review this product

$254.99

MPN: 3310081

UPC: 887548385895

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Engine Oil Pan P/N:3310081

$254.99

Description

Seal the bottom end of your GM V8 with the Agility Auto Parts Engine Oil Pan 3310081, an aluminum replacement pan covering a wide range of GM full-size trucks, SUVs and vans. It fits many vehicles, among them the 2007-2010 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L and 2007-2010 GMC Sierra 1500 4.8L / 5.3L / 6.0L / 6.2L — see the Buyer's Guide tab for the full list.

The oil pan bolts to the bottom of the engine block and holds the engine's oil supply, where the pickup draws from during operation. A pan that is cracked, dented or corroded, or that leaks at its sealing surface, can be replaced with this unit.

Material: aluminum construction.
Drain plug included with an M14 x 1-1/2 drain thread.
Not baffled; no windage tray and no oil level sensor cover included.
Engineered to match or surpass factory specifications.

Country of origin: China. Torque the drain plug and pan fasteners to the vehicle service specification, and use the correct sealing gasket as directed by the service procedure.

Interchange: 264-480 · 311-00127
264480 · 31100127 · KGMP53B · 12594603 · 12609074 · GMP53B

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

KGMP53B, 264-480, 12594603, 12609074, 311-00127, GMP53B

Frequently Asked Questions

What vehicles does this oil pan fit?

It fits many vehicles, including the 2007-2010 Chevrolet Silverado 1500 4.8L / 5.3L / 6.0L and 2007-2010 GMC Sierra 1500 4.8L / 5.3L / 6.0L / 6.2L. See the Buyer's Guide tab for the full list.

Is a drain plug included?

Yes. This pan includes a drain plug and uses an M14 x 1-1/2 drain thread size.

What is the oil pan made of?

It is made of aluminum and is engineered to match or surpass factory specifications.

Does it have a baffle or windage tray?

No. This pan is not baffled, and it does not include a windage tray or an oil level sensor cover.

When should an oil pan be replaced?

Consider replacement if the pan is cracked, dented from road debris, corroded, or leaking oil at its sealing surface or drain plug. Diagnose the source of any leak before replacing.
