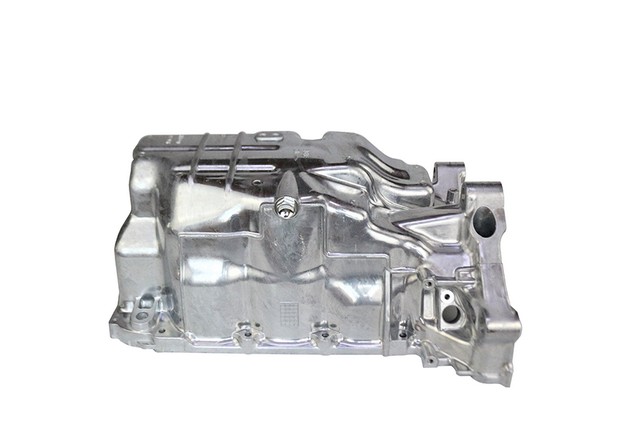

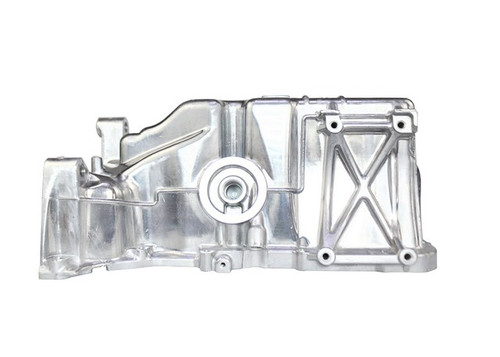

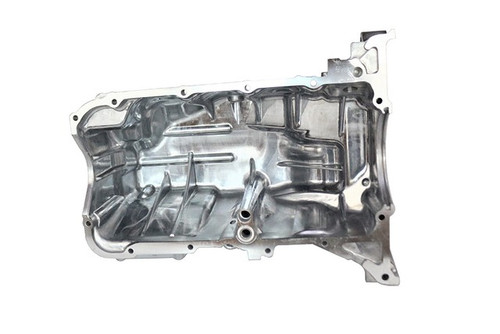

Keep your engine's oil supply sealed and contained with the Agility Auto Parts Engine Oil Pan (P/N 3310199) — a Honda Fit oil pan that drops in as a direct-fit replacement for the 2009-2014 Honda Fit with the L4-1.5L engine. Bolted to the bottom of the engine, the pan forms the reservoir that holds the engine oil and feeds the pump pickup.
Signs the original pan may need replacing include oil leaks or seepage, dents or cracks from road debris, or stripped/damaged drain threads. Country of origin: China.
Interchange: 264-456 · 311-50344
KHOP23B · 11200RB0900 · HOP23B · 264456 · 31150344
This part cross-references / interchanges with the following part numbers:
What vehicle does this Honda Fit oil pan fit?
It is a direct-fit replacement for the 2009-2014 Honda Fit with the L4-1.5L engine. Check the Buyer's Guide tab to confirm the fit for your vehicle.
Is a drain plug included?
No. The drain plug is not included. Consult the vehicle service information for the correct drain plug and whether the original may be reused.
What is the drain thread size?
The drain thread size is M12 x 1-1/2.
What is the oil pan made of?
The pan is made of aluminum.
Does this pan have a baffle or windage tray?
No. This oil pan is supplied without an internal baffle and without a windage tray.
