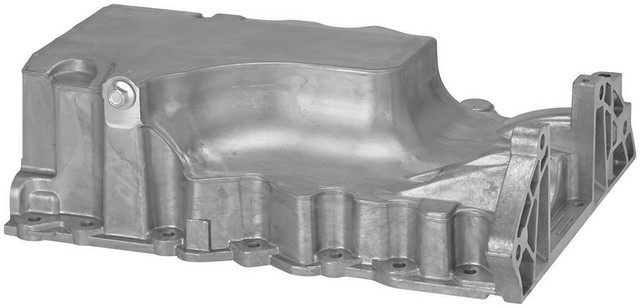

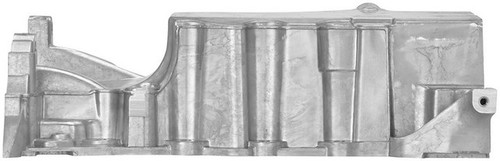

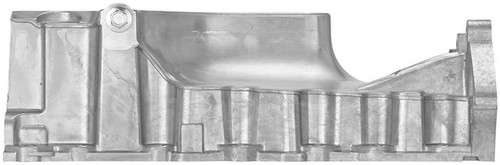

Agility 3310285 oil pan for the 2010-2012 Ford Fusion V6 3.5L and other vehicles holds the engine's oil supply. This engine oil pan sits at the bottom of the engine, where the oil drains back to it.
- Aluminum construction
- Baffled pan
- Drain plug included, with an M12 x 1-3/4 drain thread
Quick facts
- Part: Agility 3310285 oil pan
- Also called: engine oil pan
- Fits: 2010-2012 Ford Fusion V6 3.5L and other vehicles
- Material: Aluminum
- Condition: New
Oil spots under the car, or a dent, crack or stripped drain thread on the pan, can mean it needs replacing. If you see a leak, look the engine over while it is off and cool to find where the oil is coming from, since a gasket or the drain plug can leak the same way.
Fits
Agility's oil pan for the 2007-2010 Ford Edge V6 3.5L and the 2008-2012 Ford Taurus V6 3.5L is a direct-fit replacement, engineered to OEM specifications, and each of these cars takes one. Other Ford, Lincoln and Mercury cars take it too, so look up your own year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Drain thread size: M12 x 1-3/4
Build and materials
- Material: Aluminum
- Baffled: Yes
- Drain plug: included
- Condition: New
- Country of origin: China
In the box
One oil pan with its drain plug. A windage tray is not included.
Interchange: 264-371 · 311-00124
KFP69A · KMZP13A · 7T4Z6675A · FP69A
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
KFP69A, KMZP13A, 264-371, 7T4Z6675A, 311-00124, FP69A
Frequently Asked Questions
Is the Agility 3310285 the right 2010 Ford Fusion oil pan for the 2010-2012 V6 3.5L?
Yes. Agility 3310285 fits the 2010-2012 Ford Fusion V6 3.5L, and each of these cars takes one oil pan.
Does Agility 3310285 work as a Ford Taurus oil pan for the 2008-2012 V6 3.5L?
Yes. Agility 3310285 fits the 2008-2012 Ford Taurus V6 3.5L, and each of these cars takes one pan.
Does this oil pan come with a drain plug?
Yes. The drain plug is included (thread size M12 x 1-3/4), but a windage tray is not.
Is the Agility 3310285 oil pan baffled, and what is it made of?
Yes. Agility 3310285 is a baffled oil pan made of aluminum.
Does Agility 3310285 replace oil pan number 264-371?
Yes. 264-371 is one of the numbers this pan replaces, along with 311-00124 and 7T4Z6675A.
