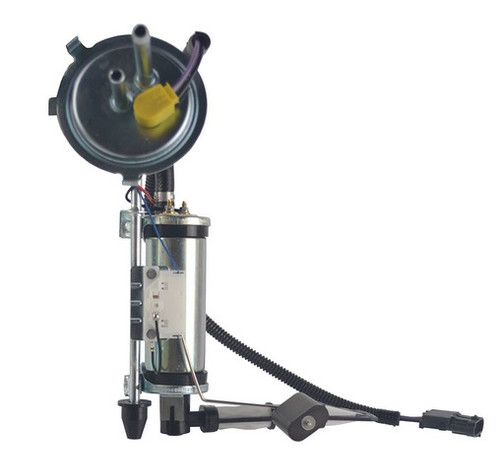

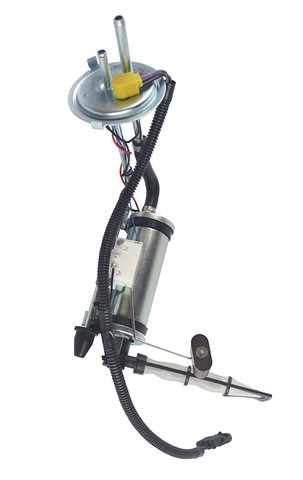

Agility 4010023 fuel pump and sender assembly for the 1991-1993 Jeep Cherokee 4-cylinder 2.5L or 6-cylinder 4.0L moves fuel from the tank toward the engine and sends the tank's fuel level to the gauge.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, with 100% leak testing
- Rated for up to 45 U.S. gallons per hour and 110 psi at 12 V DC
- Strainer inlet and a barbed outlet with a 0.375 in outside diameter
Quick facts
- Part: Agility 4010023 fuel pump and sender assembly
- Fits: 1991-1993 Jeep Cherokee 4-cylinder 2.5L or 6-cylinder 4.0L
- Condition: New
A worn assembly can show up as hard starting, stalling under load or a fuel gauge that reads wrong. Before you replace it, rule out the fuel pump fuse and relay, the fuel filter and the wiring, because a fault in any of them can look like a failing pump.
Fits
This assembly fits the 1991-1993 Jeep Cherokee with either the 4-cylinder 2.5L or the 6-cylinder 4.0L engine, with a quantity of one per vehicle. It meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: Strainer
- Outlet type: Barbed
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 45 U.S. gallons per hour
- Maximum pressure: 110 psi
- Kit included
- Condition: New
- Country of origin: China
In the box
One fuel pump and sender assembly kit.
Installation notes
- Drop-in replacement with all the necessary components included.
Interchange: E7072S · P76543M · P76543S · 4637192 · HP10148 · SP7072H · USEP7072S
This part cross-references / interchanges with the following part numbers:
E7072S, P76543M, P76543S, 4637192, HP10148, SP7072H, USEP7072S
Frequently Asked Questions
Is this a Jeep Cherokee fuel pump for 1991-1993 models with the 6-cylinder 4.0L engine?
Yes. Agility 4010023 fits the 1991-1993 Jeep Cherokee with the 4-cylinder 2.5L or the 6-cylinder 4.0L engine, with a quantity of one per vehicle.
What flow and pressure is the Agility 4010023 rated for?
This fuel pump and sender assembly is rated for a maximum flow of 45 U.S. gallons per hour and a maximum pressure of 110 psi, and it runs on 12 volts DC.
What kind of fuel line fitting does this assembly have?
The outlet of this fuel pump and sender assembly is barbed with a 0.375 in outside diameter, and the inlet is a strainer.
Does the Agility 4010023 need extra parts to install?
No. It is a kit with the necessary components included, so it is a drop-in replacement right out of the box.
How is the Agility fuel pump and sender assembly tested?
Testing covers pressure characteristics, flowrates and electrostatic discharge, and the assemblies get 100% leak testing.
