Fuel Pump and Sender Assembly for 1996-1997 Chevrolet Camaro & More - Agility 4010085

$169.99

Sold out

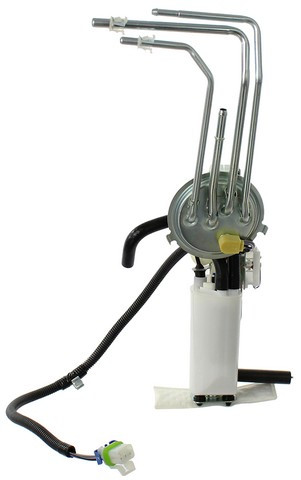

Agility Autoparts Fuel Pump and Sender Assembly 4010085

Agility Autoparts Fuel Pump and Sender Assembly 4010085 - view 2

Agility Autoparts Fuel Pump and Sender Assembly 4010085 - view 3

Part number: 4010085

UPC: 887548183309

Condition: New

Weight: 7.57 LBS

Item Package Quantity: 1

$169.99

Current Stock:

Out of stock

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump and Sender Assembly P/N:4010085

$169.99

Description

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4010085), a drop-in replacement for the 1996-1997 Chevrolet Camaro and 1996-1997 Pontiac Firebird with the V6-3.8L engine.

Complete assembly: combines the electric fuel pump and the fuel-level sender in a single unit and ships as a kit with the necessary components for installation right out of the box.
Flow & pressure: rated up to 55.75 U.S. gallons per hour maximum flow and 116 PSI maximum pressure, operating on 12 volts DC.
Inlet & outlet: strainer-type inlet with a quick-connect outlet measuring 0.375 in outside diameter.
Tested: each unit is checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing, and is engineered to meet or exceed OEM specifications.

Signs the original may need replacing include hard or no starting, sputtering under load, loss of power at highway speed, or a whine from the fuel tank. If a failed pump or sender is the cause, this assembly replaces it. Country of origin: China.

Interchange: E3983S · P74786M · 19179527 · SP3983H · USEP3983S

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

E3983S, P74786M, 19179527, SP3983H, USEP3983S

Buyer's Q&A

Frequently Asked Questions

What vehicles does this fuel pump and sender assembly fit?

It is a drop-in replacement for the 1996-1997 Chevrolet Camaro and 1996-1997 Pontiac Firebird with the V6-3.8L engine. Confirm fitment for your vehicle in the "Vehicles it fits" section.

What is included?

It ships as a kit — the electric fuel pump and the fuel-level sender in one assembly with the necessary components included for a drop-in installation.

What are the flow and pressure ratings?

It is rated up to 55.75 U.S. gallons per hour maximum flow and 116 PSI maximum pressure, and it operates on 12 volts DC.

What type of inlet and outlet does it use?

It has a strainer-type inlet and a quick-connect outlet with a 0.375 in outside diameter.

What are signs my fuel pump may need replacing?

Hard starting or no start, sputtering under load, loss of power at highway speed, or a whine from the tank. Diagnose the cause first; if the pump or sender has failed, this replaces it.
