Agility Autoparts Fuel Pump and Sender Assembly P/N:4011074
$71.99
(You save)

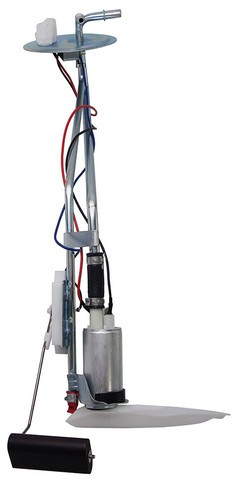

Keep fuel moving to the engine with the Agility Auto Parts Fuel Pump and Sender Assembly (MPN 4011074), a drop-in replacement for the 1986-1988 Ford Ranger in both the L4-2.3L and V6-2.9L engines. This left-side unit combines the electric fuel pump and the sending unit in one module, delivering fuel from the tank while reporting the fuel level to the gauge.
Key features:
Strainer inlet: draws fuel through a strainer-type inlet; the outlet is a quick-connect design with a 0.375 in outside diameter.
Rated output: 12-volt DC operation with a maximum flow rating of 35 U.S. gallons per hour and a maximum pressure of 6 PSI.
Tested to spec: engineered and manufactured in a highly automated, dust-free environment and built to match or surpass OEM specifications, with pressure, flow-rate, electrostatic-discharge, and 100% leak testing.
Ready to install: a drop-in replacement right out of the box with all the necessary components included.
Signs the original may need replacing include a no-start or hard-start condition, whining from the tank, stalling under load, or an erratic fuel gauge. Country of origin: Thailand.
What vehicles does this fuel pump and sender assembly fit?
It is a direct-fit replacement for the 1986-1988 Ford Ranger with the L4-2.3L or V6-2.9L engine. Check the Buyer's Guide tab to confirm fitment for your vehicle.
What are the pump's flow and pressure ratings?
It operates on 12 volts DC with a maximum flow rating of 35 U.S. gallons per hour and a maximum pressure of 6 PSI.
What type of inlet and outlet does it use?
The inlet is a strainer type, and the outlet is a quick-connect design with a 0.375 in outside diameter.
Does it include everything needed to install?
Yes. Agility lists this as a drop-in replacement right out of the box with all the necessary components included. Consult the vehicle service information for the correct procedure.
What are signs this fuel pump and sender may need replacing?
Common signs include a no-start or hard-start condition, whining from the tank, stalling under load, or an erratic fuel gauge. Diagnose the cause before replacing.
