Agility Autoparts Fuel Pump and Sender Assembly 4011128

Agility Autoparts Fuel Pump and Sender Assembly P/N:4011128

Be the first to review this product

$104.99

MPN: 4011128

UPC: 887548217516

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump and Sender Assembly P/N:4011128

$104.99

Description

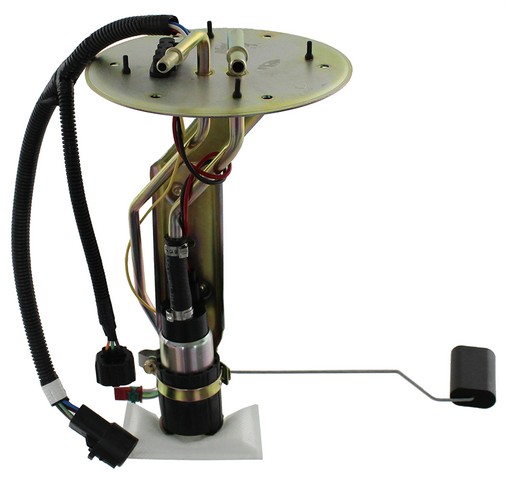

Keep fuel moving from tank to engine with the Agility Auto Parts Fuel Pump and Sender Assembly 4011128. It drops in as a direct-fit replacement for the 1996 Ford Explorer equipped with the V6-4.0L or V8-5.0L engine, combining the in-tank fuel pump with the level sender in a single unit that both delivers fuel and reports tank level to the gauge.

Flow and pressure: rated to 40 U.S. gallons per hour maximum flow and 100 PSI maximum pressure, running on 12 volts DC.
Inlet and outlet: strainer-style inlet with a quick-connect outlet measuring 0.375 in outside diameter.
Tested quality: checked for pressure characteristics, flow rates, and electrostatic discharge, plus 100% leak testing; built to meet or exceed OEM specifications.
Ready to install: ships as a drop-in replacement with the necessary components included, right out of the box.

Country of origin: Thailand. Available only while supplies last.

Interchange: E2381S · HP10197 · F67Z9H307CA · F67Z9H307CB · SP2537H · USEP2381S
Manufacturer part number 4011128

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

E2381S, HP10197, F67Z9H307CA, F67Z9H307CB, SP2537H, USEP2381S

Frequently Asked Questions

What vehicles does this fuel pump and sender assembly fit?

It is a direct-fit replacement for the 1996 Ford Explorer with the V6-4.0L or V8-5.0L engine. Confirm fitment for your vehicle in the Buyer's Guide tab.

What are the pump's flow and pressure ratings?

It is rated to a maximum flow of 40 U.S. gallons per hour and a maximum pressure of 100 PSI, operating on 12 volts DC.

Does this include the fuel level sender?

Yes. It is a combined assembly that pairs the in-tank fuel pump with the level sender, so it both delivers fuel and reports tank level to the gauge.

What are the inlet and outlet fittings?

The assembly has a strainer-style inlet and a quick-connect outlet with a 0.375 in outside diameter.

What are signs this part may need replacing?

Signs can include an engine that cranks but won't start, sputtering under load, or an inaccurate fuel gauge. Diagnose the cause first; if the pump or sender is at fault, this replaces it.
