Fuel Pump Module for 1998-2000 Chevrolet Express 3500 & More - Agility 4010163

$45.99
Agility Autoparts Fuel Pump Module Assembly 4010163
Agility Autoparts Fuel Pump Module Assembly 4010163

Vehicles this part fits
    Part number: 4010163
    UPC: 887548184085
    Condition: New
    Weight: 6.27 LBS
    Item Package Quantity: 1
    $45.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

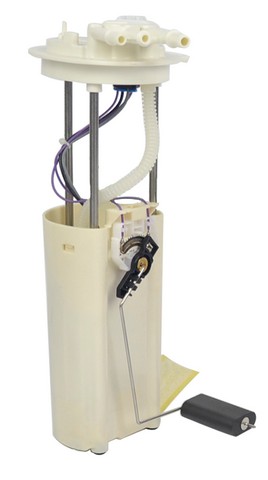

    Agility Autoparts Fuel Pump Module Assembly P/N:4010163
    Agility Autoparts Fuel Pump Module Assembly P/N:4010163
    $45.99
    $45.99

    Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010163. It's a drop-in replacement for the 1998-2000 Chevrolet Express 3500 and 1998-2000 GMC Savana 3500 in both the V8-5.7L and V8-7.4L applications, delivering pressurized fuel to the injection system out of the box.

    • Flow & pressure: rated up to 60 U.S. gallons per hour with a 95 PSI maximum pressure, running on 12 volts DC.
    • Inlet & outlet: draws through a strainer inlet and feeds a quick-connect outlet with a 0.375 in outside diameter.
    • Validated: 100% leak tested, plus checks for pressure characteristics, flow rate, and electrostatic discharge.
    • Complete module: ships as a full assembly with the necessary components included, built in a highly automated, dust-free facility to OE-level tolerances.

    The fuel pump module pressurizes fuel and delivers it to the engine. Whining from the tank, extended cranking, sputtering, or stalling can be signs the pump may need replacing — if a failed module is the cause, this unit replaces it. Diagnose the fault before installing. Country of origin: Thailand.

    Interchange: E3996M · MO390 · P74780M · P74927M · FG0109 · 19177236 · 25314354 · 25317747 · SP6175M · USEP3996M

    This part cross-references / interchanges with the following part numbers:

    E3996M, MO390, P74780M, P74927M, FG0109, 19177236, 25314354, 25317747, SP6175M, USEP3996M

    Frequently Asked Questions

    What is the Agility 4010163 fuel pump assembly?

    It's a complete Fuel Pump Module Assembly that pressurizes fuel and delivers it from the tank to the engine, shipping as a drop-in unit with the necessary components included.

    Which vehicles does this module fit?

    It's a direct-fit replacement for the 1998-2000 Chevrolet Express 3500 and 1998-2000 GMC Savana 3500 in the V8-5.7L and V8-7.4L applications.

    What are the flow and pressure ratings?

    It is rated up to 60 U.S. gallons per hour and a 95 PSI maximum pressure, operating on 12 volts DC.

    What are the inlet and outlet fittings?

    It uses a strainer inlet and a quick-connect outlet with a 0.375 in outside diameter.

    What are signs this fuel pump module may need replacing?

    Extended cranking, sputtering under load, stalling, or a whine from the tank can point to a failing pump. Diagnose the cause first; if the module is at fault, this replaces it.
