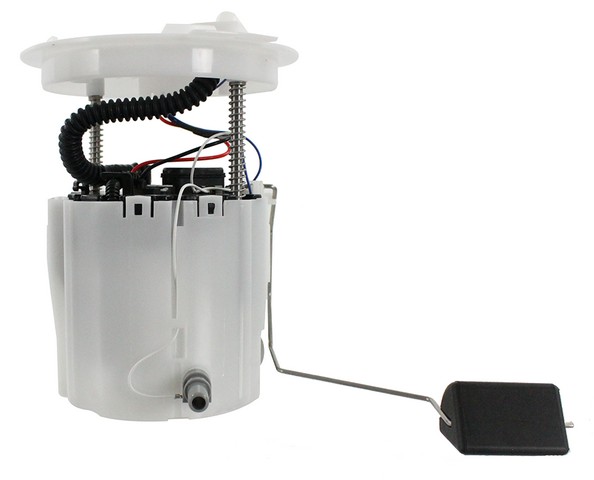

Agility 4011330 fuel pump module for the 2010-2015 Chevrolet Camaro V8 6.2L moves fuel from the tank to the engine.
- Tested for pressure characteristics, flowrates and electrostatic discharge
- 100% leak testing on every module
- Maximum flow rating of 90 U.S. gallons per hour and maximum pressure of 85 psi
- Strainer inlet and a quick-connect outlet
- Built in a highly automated, dust-free environment
Quick facts
- Part: Agility 4011330 fuel pump module
- Also called: fuel pump assembly
- Fits: 2010-2015 Chevrolet Camaro V8 6.2L
- Condition: New
Hard starting, sputtering or stalling, and a loss of power under load can point to a failing fuel pump module. Before you replace it, rule out a blown fuse, a bad fuel pump relay or a clogged fuel filter, since any of those can leave the engine just as reluctant to start. Each car takes one module.
Fits
This module is a direct-fit replacement for the 2010-2015 Chevrolet Camaro V8 6.2L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 90 U.S. gallons per hour
- Maximum pressure: 85 psi
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with the necessary components included.
Installation notes
- Drop-in replacement, ready to install right out of the box.
Interchange: E4007M · P76848M · FG1291 · 13585454 · SP6681M · USEP4007M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E4007M, P76848M, FG1291, 13585454, SP6681M, USEP4007M
Frequently Asked Questions
Will Agility 4011330 fit a 2010-2015 Chevrolet Camaro V8 6.2L?
Yes. Agility 4011330 fuel pump module is listed for the 2010-2015 Chevrolet Camaro V8 6.2L, and each car takes one.
What flow rate and pressure is this fuel pump module rated for?
Agility 4011330 is rated for a maximum flow of 90 U.S. gallons per hour and a maximum pressure of 85 psi. It runs on 12 volts DC.
What kind of inlet and outlet does this fuel pump module have?
The inlet is a strainer, and the outlet is a quick-connect type with a 0.375 in outside diameter.
Does this fuel pump assembly come ready to install?
Yes. This fuel pump assembly is a drop-in replacement right out of the box, with all the necessary components included.
How is this Agility fuel pump module tested?
This module is tested for pressure characteristics, flowrates and electrostatic discharge, and every unit also gets 100% leak testing.
