Fuel Pump Module for 1998-2005 Volkswagen Passat & More - Agility 4010194

$48.99

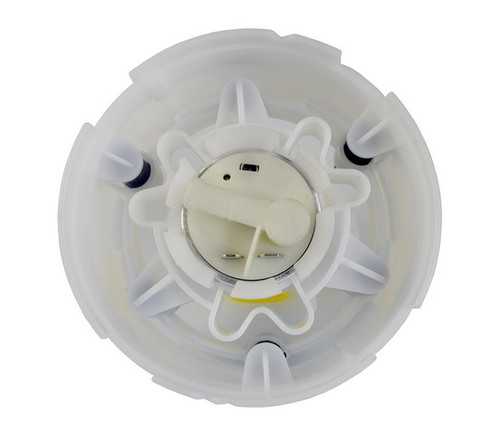

Agility Autoparts Fuel Pump Module Assembly 4010194

Agility Autoparts Fuel Pump Module Assembly 4010194 - view 2

Agility Autoparts Fuel Pump Module Assembly 4010194 - view 3

Part number: 4010194

UPC: 887548184399

Condition: New

Weight: 5.31 LBS

Item Package Quantity: 1

$48.99

Current Stock: 5

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4010194

$48.99

Description

Keep fuel moving from the tank to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4010194. It's a drop-in replacement for the 2000-2001 Audi A6 (V6-2.8L), 2002-2004 Audi A6 (V6-3.0L), and the 1998-2005 Volkswagen Passat (L4-1.8L and V6-2.8L), arriving out of the box with the necessary components included.

Flow and pressure: rated for a maximum flow of 40 U.S. gallons per hour and a maximum pressure of 110 psi on 12-volt DC power.
Inlet and outlet: draws fuel through a strainer inlet and feeds a barbed outlet measuring 0.375 in outside diameter.
Tested build: engineered in an automated, dust-free environment and checked for pressure characteristics, flow rates, electrostatic discharge, plus 100% leak testing; built to match or surpass OE specifications.
Complete module: a drop-in assembly supplied with the necessary components for installation.

Signs the original module may need replacing include hard starting, engine sputtering under load, or a no-start when the pump can't deliver fuel. Country of origin: China.

Interchange: E8368M · P76029M · FG0418 · SP5028M · USEP8368M · 8E0906087D

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

E8368M, P76029M, FG0418, SP5028M, USEP8368M, 8E0906087D

Buyer's Q&A

Frequently Asked Questions

What vehicles does the 4010194 fuel pump module fit?

It fits the 2000-2001 Audi A6 (V6-2.8L), 2002-2004 Audi A6 (V6-3.0L), and the 1998-2005 Volkswagen Passat (L4-1.8L and V6-2.8L). Check the "Vehicles it fits" section to confirm your vehicle.

Is this a complete fuel pump assembly?

Yes—it's a drop-in module supplied with the necessary components, so it installs right out of the box for the listed applications.

What are the flow and pressure ratings?

The module is rated for a maximum flow of 40 U.S. gallons per hour and a maximum pressure of 110 psi, running on 12-volt DC power.

What type of inlet and outlet does it use?

It draws fuel through a strainer inlet and feeds a barbed outlet with a 0.375-inch outside diameter.

How do I know if my fuel pump module is failing?

Common signs include hard starting, sputtering under acceleration, loss of power, or a no-start. Diagnose the cause before replacing, since other parts can produce similar symptoms.
