Keep fuel moving from tank to engine with the Agility Auto Parts Fuel Pump Module Assembly (MPN 4010228). It's a drop-in replacement for the 1999-2004 Ford F-250 Super Duty and 1999-2004 Ford F-350 Super Duty with the V10-6.8L or V8-5.4L engine, and it arrives out of the box with the necessary components included. A fuel pump module draws fuel from the tank and supplies it to the engine at the required flow and pressure; if a worn or failed original module is behind your no-start, hard starting, sputtering under load, or loss of pressure, this replaces it.
Flow & pressure: rated to a maximum flow of 70 U.S. gallons per hour and a maximum pressure of 105 PSI, operating on 12 volts DC.
Connections: strainer-type inlet and a quick-connect outlet with a 0.375 in outside diameter.
Tested & built: produced in a highly automated, dust-free environment to OE-level standards, and validated with testing for pressure characteristics, flow rates, electrostatic discharge, plus 100% leak testing.
Complete assembly: supplied as a module with the necessary components included for installation.
It's a direct-fit replacement for the 1999-2004 Ford F-250 Super Duty and 1999-2004 Ford F-350 Super Duty with the V10-6.8L or V8-5.4L engine. See the Buyer's Guide tab to confirm your vehicle.
What are the flow and pressure ratings?
This module is rated to a maximum flow of 70 U.S. gallons per hour and a maximum pressure of 105 PSI, and it operates on 12 volts DC.
What type of inlet and outlet does it use?
It has a strainer-type inlet and a quick-connect outlet with a 0.375 in outside diameter.
Does it include the parts needed for installation?
Yes. It's supplied as a module assembly with the necessary components included and is intended to drop in right out of the box.
What are signs the fuel pump module may need replacing?
Common signs include no-start or hard starting, sputtering or hesitation under load, and loss of fuel pressure. Diagnose the cause first, since these symptoms can have other sources.
Keep fuel flowing to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010320, the primary in-tank module that houses the electric fuel pump and delivers fuel from the tank to the...
Keep fuel flowing steadily to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4011326, a drop-in replacement for the 2008 Ford Escape (L4-2.3L) and 2008 Mercury Mariner (L4-2.3L)...
Keep fuel flowing steadily to your engine with the Agility Auto Parts Fuel Pump Module Assembly 4010387. It drops in as a direct-fit replacement for the 2003-2005 Hyundai Santa Fe, drawing fuel from...
Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010585. It drops in as a direct-fit replacement for the 2005 Hyundai Sonata (V6-2.7L) and the...

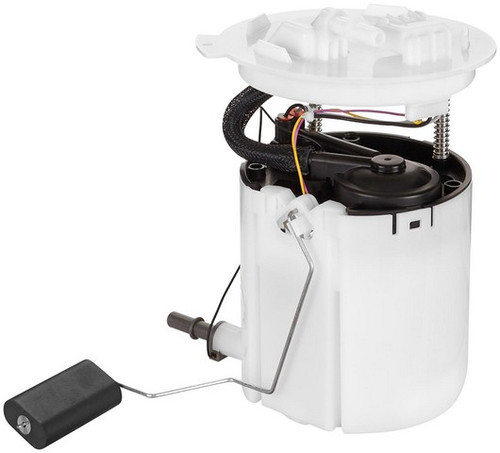

Keep fuel flowing to your Cadillac's engine with the Agility Auto Parts Fuel Pump Module Assembly (MPN 4011486), a drop-in replacement for the 2010-2013 Cadillac CTS with the V6-3.0L or V6-3.6L...
