Fuel Pump Module for 2000-2004 Ford F-250 Super Duty & More - Agility 4010232

$77.99

Sold out

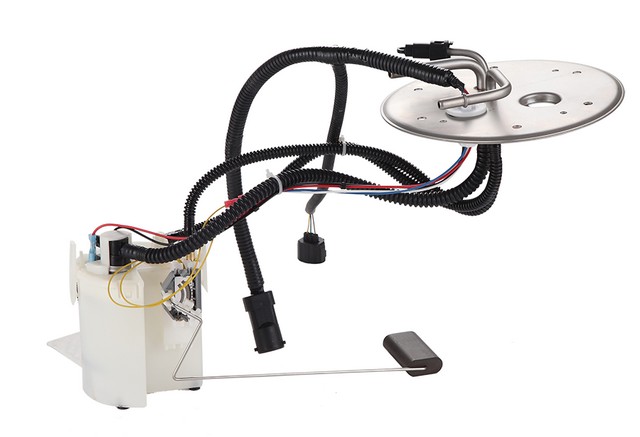

Agility Autoparts Fuel Pump Module Assembly 4010232

Part number: 4010232

UPC: 887548184771

Condition: New

Weight: 7.26 LBS

Item Package Quantity: 1

$77.99

Current Stock:

Out of stock

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4010232

$77.99

Description

Keep fuel moving to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4010232, a drop-in replacement that mounts in the tank to draw fuel through its inlet strainer and deliver it under pressure to the engine. It fits the 2000-2004 Ford F-250 Super Duty and F-350 Super Duty (V10-6.8L and V8-5.4L), plus the 1999-2004 Ford F-450 Super Duty and F-550 Super Duty (V10-6.8L).

Flow & pressure: Rated for a maximum flow of 50 U.S. gallons per hour and up to 100 PSI, running on 12 volts DC.
Connections: Strainer-type inlet with a quick-connect outlet measuring 0.375 in. outside diameter.
Tested & built: Engineered in a highly automated, dust-free environment and checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak tested.
Complete kit: Ships as a drop-in module with the necessary components included, built to meet or exceed OEM specifications.

Signs the original module may need replacing include hard starting, sputtering under load, loss of power, or a no-start condition. If a failed fuel pump module is the cause, this assembly replaces it. Country of origin: Thailand.

Interchange: E2280M · MO378 · MO379 · P76119M · FG0365 · 3C3Z9H307MB · XC3Z9H307CA · SP2033M · USEP2280M

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

E2280M, MO378, MO379, P76119M, FG0365, 3C3Z9H307MB, XC3Z9H307CA, SP2033M, USEP2280M

Buyer's Q&A

Frequently Asked Questions

What does this fuel pump assembly do?

This in-tank fuel pump module assembly draws fuel through its inlet strainer and delivers it under pressure to the engine, supporting proper fuel delivery for the listed applications.

Which vehicles does the 4010232 fit?

It fits the 2000-2004 Ford F-250 and F-350 Super Duty (V10-6.8L and V8-5.4L), and the 1999-2004 Ford F-450 and F-550 Super Duty (V10-6.8L). See the "Vehicles it fits" section to confirm your vehicle.

What are the flow and pressure ratings?

The module is rated for a maximum flow of 50 U.S. gallons per hour and a maximum pressure of 100 PSI, operating on 12 volts DC.

Does it come with everything needed?

It ships as a drop-in module with the necessary components included, and is built to meet or exceed OEM specifications.

What are signs a fuel pump module may be failing?

Common signs include hard starting, sputtering or hesitation under load, loss of power, or a no-start condition. Diagnose the cause before replacing, as these symptoms can have other sources.
