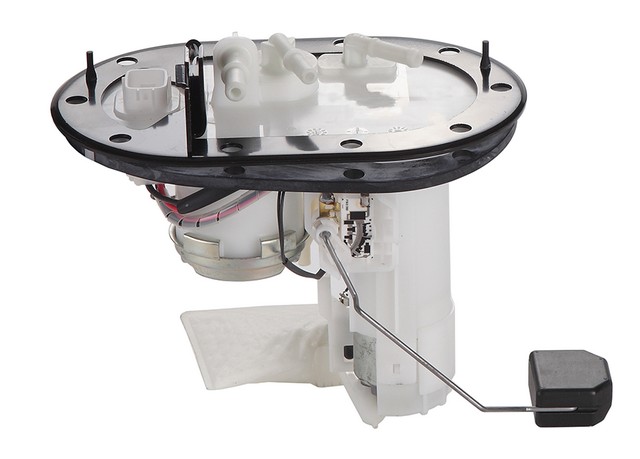

Agility 4010259 fuel pump module for the 2000-2003 Subaru Outback H4 2.5L and other vehicles delivers fuel from the tank to the engine. Its specifications are held at or above OEM levels.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge
- Every unit gets a 100% leak test
- Strainer inlet and quick-connect outlet
Quick facts
- Part: Agility 4010259 fuel pump module
- Also called: fuel pump assembly
- Fits: 2000-2003 Subaru Outback H4 2.5L and other vehicles
Hard starting, stalling or a whine from the fuel tank area can mean the pump module is wearing out. Before you replace the module, rule out a blown fuse, a failed relay or a clogged fuel filter, which can produce similar symptoms.
Fits
It fits the 2000-2003 Subaru Outback H4 2.5L, the 2000-2003 Subaru Legacy H4 2.5L and the 2003 Subaru Baja H4 2.5L. This listing is one module, and each car takes a single module.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: Strainer
- Outlet type: Quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Maximum flow rating: 45 U.S. gallons per hour
- Maximum pressure: 80 psi
- Voltage: 12 V DC
- Country of origin: Thailand
Installation notes
- Arrives ready to drop in, with the necessary components included.
Interchange: E8596M · P76529M · FG1350 · SP4039M · 42021AE02B
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E8596M, P76529M, FG1350, SP4039M, 42021AE02B
Frequently Asked Questions
Is the Agility 4010259 fuel pump module right for the 2003 Subaru Baja H4 2.5L?
Yes. Agility 4010259 fits the 2003 Subaru Baja H4 2.5L, along with the 2000-2003 Subaru Outback H4 2.5L and the 2000-2003 Subaru Legacy H4 2.5L.
What fuel pressure and flow is this fuel pump assembly rated for?
The Agility 4010259 is rated for a maximum of 80 psi and 45 U.S. gallons per hour. It runs on 12 volts DC.
Does this fuel pump module have a quick-connect outlet?
Yes. The outlet is a quick connect with a 0.375 inch outside diameter, and the inlet is a strainer.
How is the Agility 4010259 fuel pump module tested?
Each unit is tested for pressure characteristics, flowrates and electrostatic discharge, and it also gets a 100% leak test.
Could hard starting or sputtering mean this fuel pump module is wearing out?
It can, since a weak pump may cause hard starting, stalling or a whine from the tank area. A shop can test fuel pressure to confirm.
