Agility Autoparts Fuel Pump Module Assembly 4010280
Agility Autoparts Fuel Pump Module Assembly 4010280

Fuel Pump Module for 2001-2002 Chevrolet Express 3500 & More - Agility 4010280

Be the first to review this product
$47.99
MPN: 4010280
UPC: 887548185259
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert

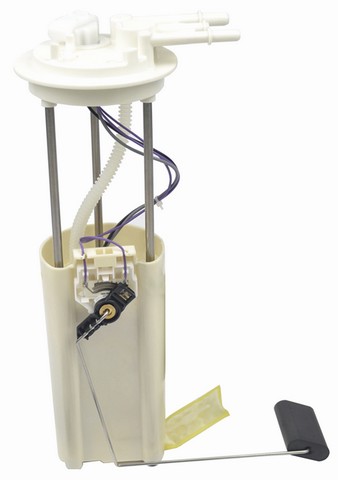

Agility Autoparts Fuel Pump Module Assembly P/N:4010280
Agility Autoparts Fuel Pump Module Assembly P/N:4010280
$47.99

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly, MPN 4010280. This fuel pump assembly drops in as a direct-fit replacement for the 2001-2002 Chevrolet Express 3500 (V8-5.7L, V8-8.1L) and the 2001-2002 GMC Savana 3500 (V8-5.7L, V8-8.1L), housing the in-tank pump and related components in a single serviceable unit.

  • Flow & pressure: Rated for a maximum flow of 65 U.S. gallons per hour and a maximum pressure of 95 PSI, running on 12V DC.
  • Inlet & outlet: Strainer-type inlet to help screen debris, with a quick-connect outlet measuring 0.375 in. outside diameter.
  • Tested build: Checked for pressure characteristics, flow rates, and electrostatic discharge, plus 100% leak testing; produced in an automated, dust-free environment and designed to meet or exceed all OEM specifications.
  • Ready to install: Ships as a drop-in replacement with the necessary components included right out of the box.

Signs the original module may need replacing include hard starting, stalling, loss of fuel pressure, or a no-start condition. Diagnose the cause before replacing, since these symptoms can have other sources. Country of origin: China. Available only while supplies last.

Interchange: E3551M · P74979M · FG0159 · 19179595 · 25326141 · 25348319 · SP6235M · USEP3551M

This part cross-references / interchanges with the following part numbers:

E3551M, P74979M, FG0159, 19179595, 25326141, 25348319, SP6235M, USEP3551M

Frequently Asked Questions

What vehicles does the Agility 4010280 fuel pump module fit?

It's a direct-fit replacement for the 2001-2002 Chevrolet Express 3500 and 2001-2002 GMC Savana 3500, both in V8-5.7L and V8-8.1L. See the Buyer's Guide tab to confirm your vehicle.

What are the flow and pressure ratings?

This module is rated for a maximum flow of 65 U.S. gallons per hour and a maximum pressure of 95 PSI, operating on 12V DC.

What type of inlet and outlet does it have?

It uses a strainer-type inlet to help screen debris and a quick-connect outlet with a 0.375 in. outside diameter.

Does it come ready to install?

Yes. Agility ships it as a drop-in replacement with the necessary components included right out of the box.

What numbers does this part interchange with?

It replaces E3551M, P74979M, FG0159, 19179595, 25326141, 25348319, SP6235M, and USEP3551M.
