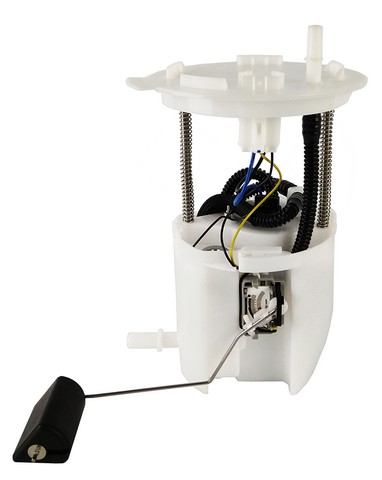

Agility 4010784 right fuel pump module for the 2011-2012 Ford Explorer V6 3.5L delivers fuel from the tank to the engine.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
- Strainer inlet with a quick-connect outlet, 0.375 in outside diameter
- Maximum flow rating of 70 U.S. gallons per hour at a maximum pressure of 60 psi
- Runs on 12 volts DC
Quick facts
- Part: Agility 4010784 fuel pump module
- Also called: fuel pump assembly
- Fits: 2011-2012 Ford Explorer V6 3.5L
- Position: Primary right
- Condition: New
A worn module can show up as hard starting, stalling or sputtering under load, or a whine from the fuel tank area. Before you replace the module, rule out a blown fuse, a relay or a wiring fault, because those share symptoms with a failing module; a shop can test the fuel system to sort it out.
Fits
This module is a direct-fit replacement for the 2011-2012 Ford Explorer V6 3.5L. This listing is one module for the primary right position, and the 2011-2012 Ford Explorer V6 3.5L takes one in that position.
Specifications
Fit and size
- Position: Primary right
- Quantity per vehicle: 1
- Outlet outside diameter: 0.375 in
- Voltage: 12 V DC
- Maximum flow rating: 70 U.S. gallons per hour
- Maximum pressure: 60 psi
Build and materials
- Inlet type: strainer
- Outlet type: quick connect
- Kit included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module kit with all the necessary components included.
Interchange: E2577M · MO541 · P76599M · FG1329 · BB5Z9H307C · SP2469M · USEP2577M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E2577M, MO541, P76599M, FG1329, BB5Z9H307C, SP2469M, USEP2577M
Frequently Asked Questions
Is the Agility 4010784 fuel pump module right for the 2011-2012 Ford Explorer V6 3.5L?
Yes. The Agility 4010784 is listed for the 2011-2012 Ford Explorer V6 3.5L in the primary right position.
Does the Agility 4010784 fuel pump assembly kit include all the necessary components?
Yes. This Agility 4010784 kit is supplied with all the necessary components for the module.
What flow rating and pressure does this fuel pump module have?
It has a maximum flow rating of 70 U.S. gallons per hour and a maximum pressure of 60 psi, and it runs on 12 volts DC.
Could a whine from the tank mean this fuel pump module is wearing out?
Yes. A tank whine, hard starting or stalling can be signs of a worn fuel pump module, and a shop can test the fuel system to confirm.
What kind of outlet does the Agility 4010784 use?
The Agility 4010784 has a quick-connect outlet with a 0.375 in outside diameter, and its inlet type is a strainer.
