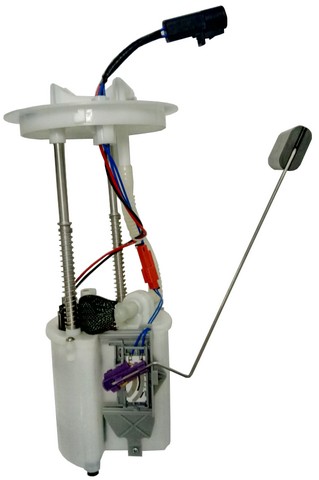

Agility 4010616 fuel pump module for the 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles supplies fuel from the tank to the engine under pressure. Also called a fuel pump assembly, it meets or exceeds all OEM specifications.
- Strainer inlet and a quick-connect outlet with a 0.375 in outside diameter
- 12 volt DC pump with a maximum flow rating of 75 U.S. gallons per hour and a maximum pressure of 90 psi
- Tested for pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing
- Highly automated, dust-free production environment
Quick facts
- Part: Agility 4010616 fuel pump module
- Also called: fuel pump assembly
- Fits: 2007-2008 Ford Escape 4-cylinder 2.3L or V6 3.0L and other vehicles
- Condition: New
Hard starting, stalling, sputtering or a loss of power under load can mean the pump module is wearing out. Before replacing it, look over the fuel pump fuse and relay with the ignition off, and have a shop test fuel pressure to confirm the module is the cause.
Fits
It also fits the 2008 Mazda Tribute 4-cylinder 2.3L or V6 3.0L and the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 75 U.S. gallons per hour
- Maximum pressure: 90 psi
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with all the necessary components included, ready to install out of the box. The listing holds one module, which is the quantity the vehicle needs.
Interchange: E2495M · MO478 · P77157M · FG0967 · 8L8Z9H307C · 8L8Z9H307D · ZZC21335X · ZZC21335XA · SP2135M · USEP2495M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E2495M, MO478, P77157M, FG0967, 8L8Z9H307C, 8L8Z9H307D, ZZC21335X, ZZC21335XA, SP2135M, USEP2495M
Frequently Asked Questions
Will the Agility 4010616 fuel pump module work in the 2007-2008 Mercury Mariner 4-cylinder 2.3L or V6 3.0L?
Yes. Agility 4010616 fits the 2007-2008 Mercury Mariner with either the 4-cylinder 2.3L or the V6 3.0L engine.
Does the Agility 4010616 come with everything needed to install it?
Yes. This module comes with all the necessary components included and is ready to install right out of the box.
What flow and pressure ratings does this 12-volt fuel pump module have?
This fuel pump module runs on 12 volts DC with a maximum flow rating of 75 U.S. gallons per hour and a maximum pressure of 90 psi.
What kind of outlet connection does this fuel pump module use?
The outlet is a quick-connect type with a 0.375 in outside diameter, and the inlet uses a strainer.
How is the Agility 4010616 fuel pump module tested?
Agility 4010616 is tested for pressure characteristics, flow rates and electrostatic discharge, and every unit gets 100% leak testing.
