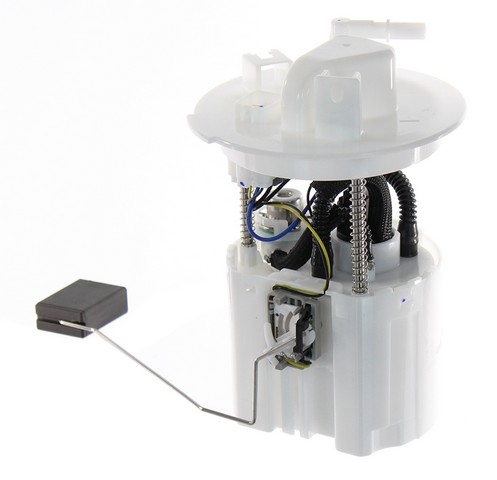

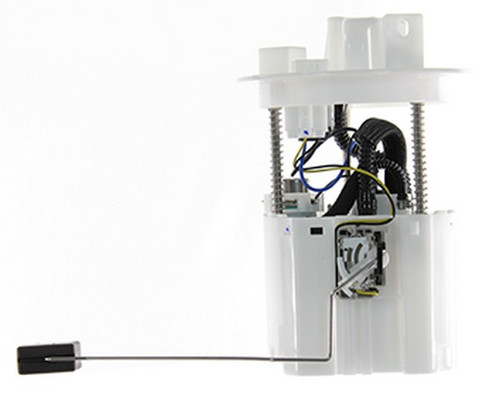

Agility 4010402 fuel pump module for the 2003-2008 Mazda 6 V6 3.0L sends fuel from the tank to the engine. It is built to OEM specifications or better.
- Tested for pressure characteristics, flow rates and electrostatic discharge, plus 100% leak testing
- Highly automated, dust-free production environment
- Comes with the necessary components included, ready to install out of the box
- Maximum flow rating of 55 U.S. gallons per hour and maximum pressure of 66 psi
Quick facts
- Part: Agility 4010402 fuel pump module
- Also called: fuel pump assembly
- Fits: 2003-2008 Mazda 6 V6 3.0L
- Condition: New
Hard starting, stalling or a whine from the tank can mean the pump is weakening. Before replacing the module, look over the fuel pump fuse and the wiring connector with the ignition off, since a blown fuse or a corroded terminal can leave the pump dead too. A shop can run any fuel pressure test.
Fits
This module fits the 2003-2008 Mazda 6 V6 3.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
- Inlet type: strainer
Build and materials
- Voltage: 12 V DC
- Kit included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module with the necessary components for installation. This listing holds one module, and the 2003-2008 Mazda 6 V6 3.0L takes one.
Interchange: 323-56058
E8586M · P76310M · FG1244 · AJ801335ZA · SP4005M · USEP8586M
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E8586M, P76310M, FG1244, 323-56058, AJ801335ZA, SP4005M, USEP8586M
Frequently Asked Questions
Will the Agility 4010402 fit a 2003-2008 Mazda 6 V6 3.0L?
Yes. Agility 4010402 is listed for the 2003-2008 Mazda 6 V6 3.0L, and that car takes one module.
Does this fuel pump assembly come with the parts needed to install it?
Yes. The kit includes the necessary components, so this module is ready to install out of the box. The listing is one module.
What outlet does the Agility 4010402 fuel pump module use?
Agility 4010402 has a quick-connect outlet with a 0.375 in outside diameter and a strainer inlet. It runs on 12 V DC.
Can hard starting or a whine from the tank mean this fuel pump module is weak?
Yes, they can be signs of a weak pump, though other faults give similar signs. A shop can test fuel pressure to confirm.
Is this fuel pump module leak tested?
Yes. Each module gets 100% leak testing, along with checks for pressure characteristics, flow rates and electrostatic discharge.
