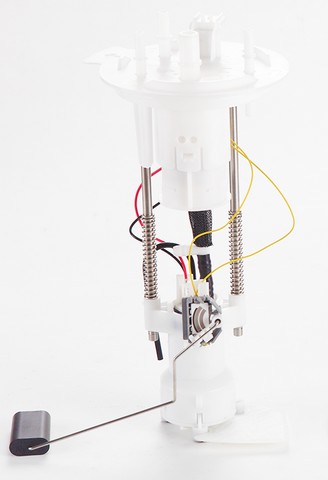

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010423, a complete drop-in module built to serve as a direct replacement for the 2005-2008 Ford F-150 (V6-4.2L) and the 2004-2008 Ford F-150 (V8-4.6L, V8-5.4L), plus the 2007-2008 Ford Lobo (V8-4.6L, V8-5.4L). It houses the pump and strainer inlet in one module so the whole unit installs together.
Agility fuel module assemblies are engineered and manufactured in a highly automated, dust-free environment and are built to meet or exceed OEM specifications.
- Flow & pressure: rated to a maximum flow of 90 U.S. gallons per hour and a maximum 110 PSI, running on 12 volts DC.
- Connections: strainer-style inlet and a quick-connect outlet with a 0.375 in outside diameter.
- Tested: checked for pressure characteristics, flow rates and electrostatic discharge, with 100% leak testing.
- Kit included: ships as a drop-in module with the necessary components included.
If a worn fuel pump module is the cause of hard starting, sputtering under load, stalling or a whining fuel-tank noise, this assembly replaces it. Country of origin: Thailand.
Interchange: 525-2180 · 323-00125
5252180 · 32300125 · E2434M · MO382 · P76335M · P76343M · FG0845 · 4L3Z9H307AF · 5L3Z9H307SB · 6L2Z9H307A · 7L3Z9H307A · 8L3Z9H307A · SP2004M · USEP2434M
This part cross-references / interchanges with the following part numbers:
E2434M, MO382, P76335M, P76343M, FG0845, 4L3Z9H307AF, 5L3Z9H307SB, 6L2Z9H307A, 7L3Z9H307A, 8L3Z9H307A, 525-2180, 323-00125, SP2004M, USEP2434M
