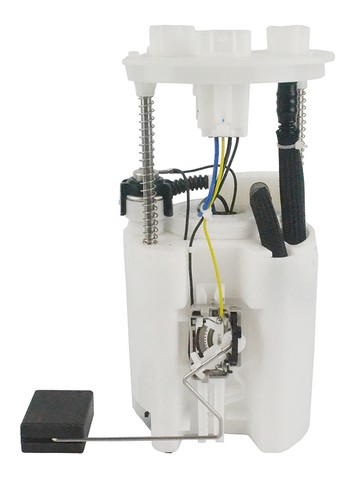

Agility 4010446 fuel pump module for the 2004-2006 Toyota Sienna V6 3.3L moves fuel from the tank to the engine at pressure.
- Highly automated, dust-free manufacturing environment
- Tested for pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing
- Kit with all the necessary components included
- Rated for up to 50 U.S. gallons per hour and 80 psi at 12 V DC
- Strainer inlet and 0.375 inch quick-connect outlet
Quick facts
- Part: Agility 4010446 fuel pump module
- Also called: fuel pump assembly
- Fits: 2004-2006 Toyota Sienna V6 3.3L
- Condition: New
Hard starting, stalling or sputtering can mean the pump in the module is weak, and a fuel pump assembly that no longer delivers enough pressure leaves the engine short of fuel. A clogged fuel filter, a bad relay or fuse, or a wiring fault can also sit behind a no-start, so find what is wrong before you buy a new module.
Fits
It is a drop-in replacement for the 2004-2006 Toyota Sienna V6 3.3L and meets or exceeds all OEM specifications.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 50 U.S. gallons per hour
- Maximum pressure: 80 psi
- Kit included
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module kit with the necessary components included. This listing is one module, and the 2004-2006 Toyota Sienna V6 3.3L takes one.
Interchange: 313-59229
E8841M · P76693M · FG1381 · SP9021M · 7702008031
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
E8841M, P76693M, FG1381, 313-59229, SP9021M, 7702008031
Frequently Asked Questions
Does the Agility 4010446 fuel pump module fit the 2004-2006 Toyota Sienna V6 3.3L?
Yes, Agility 4010446 is listed for the 2004-2006 Toyota Sienna V6 3.3L. This listing is one module, and that vehicle takes one.
Does this fuel pump module come as a kit or as the pump alone?
It is sold as a kit with the necessary components for installation included. The listing is one module.
What flow rate and pressure is the Agility 4010446 fuel pump module rated for?
Agility 4010446 is rated for up to 50 U.S. gallons per hour and 80 psi at 12 V DC. It has a strainer inlet and a 0.375 inch quick-connect outlet.
What signs can show a fuel pump module is wearing out?
A whine from the fuel tank area, a loss of power under load, or an engine that cranks but will not start can go with a weak module. A shop can pressure-test the fuel system to confirm.
Can Agility 4010446 replace a part numbered E8841M?
Yes, E8841M is one of the numbers Agility 4010446 replaces, along with 313-59229 and FG1381.
