Fuel Pump Module for 2004-2008 Chevrolet Express 3500 & More - Agility 4010477

$110.99
Agility Autoparts Fuel Pump Module Assembly 4010477
Agility Autoparts Fuel Pump Module Assembly 4010477

Vehicles this part fits
    Part number: 4010477
    UPC: 887548187222
    Condition: New
    Weight: 7.25 LBS
    Item Package Quantity: 1
    $110.99
    Adding to cart… The item has been added

    Have questions?

    Ask an Expert

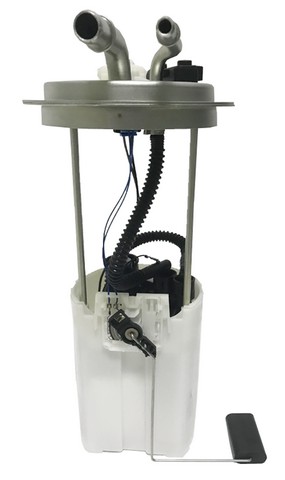

    Agility Autoparts Fuel Pump Module Assembly P/N:4010477
    Agility Autoparts Fuel Pump Module Assembly P/N:4010477
    $110.99
    $110.99

    Agility 4010477 fuel pump module for the 2004-2008 Chevrolet Express 3500 V8 6.0L, the 2005-2008 Express 3500 V8 4.8L and other vehicles pumps fuel from the tank to the engine. It meets or exceeds all OEM specifications.

    • Engineered and built in a highly automated, dust-free environment
    • Tested for pressure characteristics, flowrates and electrostatic discharge, with 100% leak testing
    • Strainer inlet and a quick-connect outlet with a 0.375 in outside diameter
    • Rated for up to 60 U.S. gallons per hour of flow and 110 psi of pressure

    Quick facts

    • Part: Agility 4010477 fuel pump module
    • Also called: fuel pump assembly
    • Fits: 2004-2008 Chevrolet Express 3500 V8 6.0L, the 2005-2008 Express 3500 V8 4.8L and other vehicles
    • Condition: New

    A fuel pump module that is wearing out can show up as hard starting, sputtering under load or stalling. Those signs alone do not prove the pump is the problem; a clogged fuel filter is another common cause.

    Fits

    It fits the 2004-2008 Chevrolet Express 3500 V8 6.0L and the 2005-2008 Express 3500 V8 4.8L. It also fits the 2004-2008 GMC Savana 3500 V8 6.0L and the 2005-2008 Savana 3500 V8 4.8L, and each vehicle takes one module.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Inlet type: strainer
    • Outlet type: quick connect
    • Outlet outside diameter: 0.375 in

    Build and materials

    • Kit: included
    • Voltage: 12 V DC
    • Maximum flow rating: 60 U.S. gallons per hour
    • Maximum pressure: 110 psi
    • Condition: New
    • Country of origin: Thailand

    In the box

    One fuel pump module with its kit.

    Installation notes

    • Comes as a drop-in replacement with all the necessary components included.

    Interchange: E3681M · P76091M · FG0401 · 19352891 · SP3681M · USEP3681M

    This part cross-references / interchanges with the following part numbers:

    E3681M, P76091M, FG0401, 19352891, SP3681M, USEP3681M

    Frequently Asked Questions

    Is the Agility 4010477 the right fuel pump module for the 2004-2008 Chevrolet Express 3500 V8 6.0L?

    Yes. Agility 4010477 fits the 2004-2008 Chevrolet Express 3500 V8 6.0L and the 2005-2008 Express 3500 V8 4.8L, with one module needed per vehicle.

    Does the Agility 4010477 fit the 2005-2008 GMC Savana 3500 V8 4.8L?

    Yes. Agility 4010477 fits the 2005-2008 GMC Savana 3500 V8 4.8L and the 2004-2008 GMC Savana 3500 V8 6.0L.

    What is the flow rating of this fuel pump assembly?

    This fuel pump module is rated for a maximum flow of 60 U.S. gallons per hour and a maximum pressure of 110 psi. It runs on 12 volts DC.

    Does the Agility 4010477 come with the parts needed to install it?

    Yes. Agility 4010477 is a kit with all the necessary components included, so the module is ready to install out of the box.

    How is this fuel pump module tested?

    Testing covers pressure characteristics, flowrates and electrostatic discharge, plus 100% leak testing.
