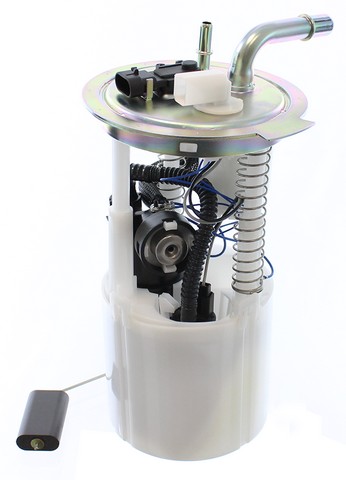

Agility 4010506 fuel pump module for the 2005-2006 Chevrolet Trailblazer EXT 6-cylinder 4.2L or V8 5.3L and other vehicles delivers fuel from the tank to the engine.
- Built in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge
- 100% leak testing
- Strainer inlet and quick-connect outlet
- Fuel pump module comes with all the necessary components included
Quick facts
- Part: Agility 4010506 fuel pump module
- Also called: fuel pump assembly
- Fits: 2005-2006 Chevrolet Trailblazer EXT 6-cylinder 4.2L or V8 5.3L and other vehicles
A worn module can show up as hard starting, sputtering or a loss of power. Before you replace the module, rule out a blown fuse, a faulty relay or damaged wiring, since those faults can look similar.
Fits
The 2005-2006 GMC Envoy XL 6-cylinder 4.2L or V8 5.3L, the 2005-2006 Isuzu Ascender 6-cylinder 4.2L or V8 5.3L and other vehicles also take this module. If your vehicle is not named here, look for it in the "Vehicles it fits" section further down the product page.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: Strainer

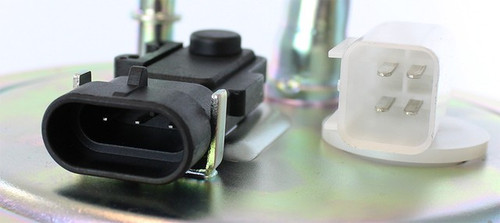

- Outlet type: Quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Voltage: 12 V DC
- Maximum flow rating: 85 U.S. gallons per hour
- Maximum pressure: 62 psi
- Kit included
- Country of origin: Thailand
In the box
One fuel pump module with all the necessary components included. This listing holds one module, which is the quantity the application calls for.
Interchange: 150129-A
MU1701 · E3746M · MO389 · P76218M · FG0516 · 19153374 · 8191533740 · SP6007M · USEP3746M
This part cross-references / interchanges with the following part numbers:
MU1701, E3746M, MO389, P76218M, FG0516, 19153374, 8191533740, SP6007M, 150129-A, USEP3746M
Frequently Asked Questions
Does the Agility 4010506 fit a 2005-2006 Chevrolet Trailblazer EXT 6-cylinder 4.2L or V8 5.3L?
Yes. The Agility 4010506 fuel pump module is listed for the 2005-2006 Chevrolet Trailblazer EXT with either the 6-cylinder 4.2L or the V8 5.3L, and that application takes one module.
Is this fuel pump module right for the 2005-2006 GMC Envoy XL 6-cylinder 4.2L or V8 5.3L?
Yes. The 2005-2006 GMC Envoy XL with the 6-cylinder 4.2L or the V8 5.3L is listed for the Agility 4010506 fuel pump module.
Does this fuel pump assembly have a strainer on the inlet?
Yes. The Agility 4010506 has a strainer inlet and a quick-connect outlet with a 0.375 in outside diameter.
What flow rate and pressure is this fuel pump module rated for?
This module has a maximum flow rating of 85 U.S. gallons per hour and a maximum pressure of 62 psi. It runs on 12 V DC.
Is the Agility 4010506 fuel pump module supplied with all the necessary components?
Yes. It arrives with all the necessary components included. This listing is one module.
