Agility Autoparts Fuel Pump Module Assembly 4010516

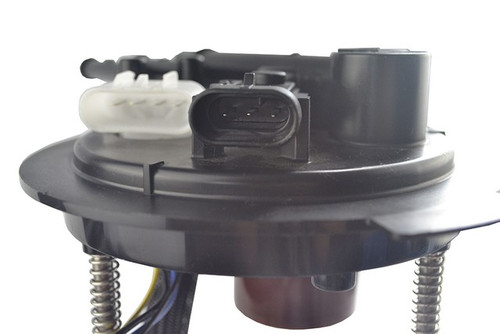

Agility Autoparts Fuel Pump Module Assembly 4010516 - view 2
Agility Autoparts Fuel Pump Module Assembly 4010516
Agility Autoparts Fuel Pump Module Assembly 4010516 - view 2

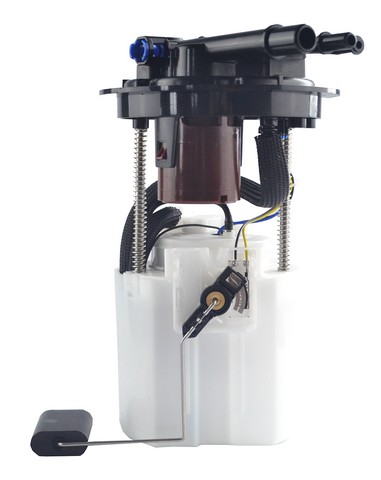

Agility Autoparts Fuel Pump Module Assembly P/N:4010516

Be the first to review this product
$124.99
MPN: 4010516
UPC: 887548187611
Item Package Quantity: 1
Adding to cart… The item has been added

Have questions?

Ask an Expert
Agility Autoparts Fuel Pump Module Assembly P/N:4010516
Agility Autoparts Fuel Pump Module Assembly P/N:4010516
$124.99

Keep fuel flowing from the tank to the injectors with the Agility Auto Parts Fuel Pump Module Assembly (4010516). It drops in as a direct-fit replacement for the 2005-2006 Buick Terraza (V6-3.5L) and 2006-2007 Terraza (V6-3.9L), 2005-2006 Chevrolet Uplander (V6-3.5L) and 2007 Uplander (V6-3.9L), 2005-2006 Pontiac Montana (V6-3.5L) and 2006-2007 Montana (V6-3.9L), and the 2006 Saturn Relay (V6-3.5L) and 2006-2007 Relay (V6-3.9L).

  • Complete assembly: ships as a drop-in fuel pump assembly with all the necessary components included, right out of the box.
  • Rated flow and pressure: delivers up to 55 U.S. gallons per hour and a maximum of 61 PSI on 12-volt DC power.
  • Strainer inlet, quick-connect outlet: draws fuel through a strainer inlet and feeds a 0.375-inch quick-connect outlet.
  • Validated quality: checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak tested, and built to OE-level tolerances.

When a worn or failing fuel pump is the cause of hard starts, stalling, or a loss of fuel pressure, this module replaces the original. Country of origin: Thailand.

Interchange: E3717M · MO445 · P76234M · FG0406 · 19121350 · 19121352 · 19153049 · SP6014M · USEP3717M

This part cross-references / interchanges with the following part numbers:

E3717M, MO445, P76234M, FG0406, 19121350, 19121352, 19153049, SP6014M, USEP3717M

Frequently Asked Questions

Which vehicles does this fuel pump module fit?

It's a direct-fit for the 2005-2007 Buick Terraza, 2005-2007 Chevrolet Uplander, 2005-2007 Pontiac Montana, and 2006-2007 Saturn Relay with the V6-3.5L or V6-3.9L engine. See the Buyer's Guide tab for the full list.

What are the flow and pressure ratings?

It's rated for up to 55 U.S. gallons per hour and a maximum of 61 PSI, running on 12 volts DC.

Does it include everything needed to install?

Agility supplies it as a drop-in assembly with all the necessary components included, ready to install out of the box.

What inlet and outlet does it use?

It draws fuel through a strainer inlet and feeds a 0.375-inch quick-connect outlet.

Could a bad fuel pump cause my no-start or stalling?

A failing pump can lead to hard starts, stalling, or low fuel pressure. Diagnose the cause first; if the pump module is at fault, this replaces it.
