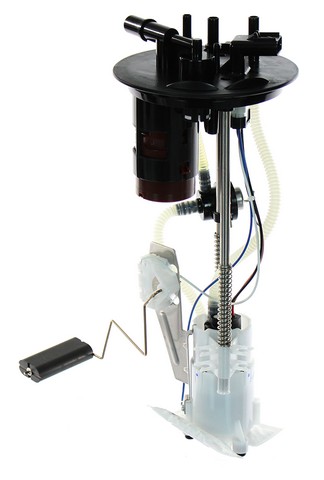

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010646, a direct-fit Ford Ranger fuel pump module for the 2007-2011 Ford Ranger (L4-2.3L and V6-4.0L) and the 2007-2008 Ford Ranger (V6-3.0L). This in-tank module draws fuel through its strainer inlet and delivers it at the pressure and volume the engine's fuel system needs.
Agility fuel module assemblies are engineered and built in an automated, dust-free environment and meet or exceed all OEM specifications, with checks for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing.
- Inlet & outlet: strainer inlet with a quick-connect outlet measuring 0.375 in outside diameter.
- Performance ratings: up to 55 U.S. gallons per hour maximum flow, 65 PSI maximum pressure, and 12 volts DC operation.
- Drop-in ready: ships as a complete kit with the necessary components for a right-out-of-the-box installation.
- Country of origin: Thailand.
Signs the original module may need replacing include long crank times, hard starting, stalling, hesitation or loss of power under load, or a no-start when the pump can't deliver fuel.
Interchange: E2503M · P76479M · FG0884 · 7L5Z9H307B · 8L5Z9H307B · 8L5Z9H307E · SP2371M · USEP2503M
This part cross-references / interchanges with the following part numbers:
E2503M, P76479M, FG0884, 7L5Z9H307B, 8L5Z9H307B, 8L5Z9H307E, SP2371M, USEP2503M
Frequently Asked Questions
Does this fuel pump module fit my 2007-2011 Ford Ranger L4-2.3L or V6-4.0L?
It's a direct-fit replacement for the 2007-2011 Ford Ranger with the L4-2.3L or V6-4.0L, and the 2007-2008 Ford Ranger with the V6-3.0L. Check the "Vehicles it fits" section to confirm your engine.
What's included with this fuel pump assembly?
It ships as a complete kit and is a drop-in replacement right out of the box, with the necessary components included for installation.
What are the flow and pressure ratings?
The module is rated up to 55 U.S. gallons per hour maximum flow and 65 PSI maximum pressure, and it operates on 12 volts DC.
What type of inlet and outlet does it use?
It has a strainer inlet and a quick-connect outlet with a 0.375 in outside diameter.
How do I know if my fuel pump module is failing?
Common signs include extended cranking, hard starting, stalling, hesitation or power loss under load, and no-start conditions. Diagnose the cause before replacing, since these symptoms can have other sources.
