Agility Autoparts Fuel Pump Module Assembly 4010713

Agility Autoparts Fuel Pump Module Assembly P/N:4010713

Be the first to review this product

$113.99

MPN: 4010713

UPC: 887548189585

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4010713

$113.99

Description

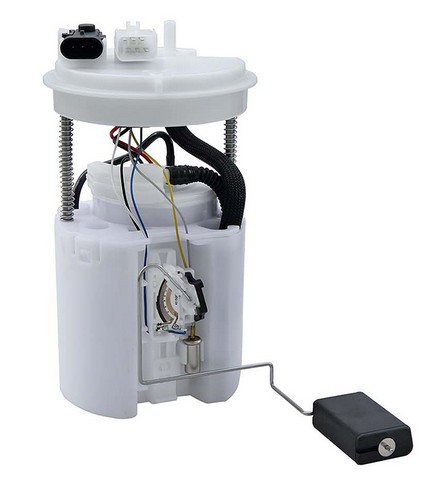

Keep fuel flowing from the tank to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4010713 — a drop-in fuel pump assembly built to replace a worn or failed original on the 2009-2011 Chevrolet Aveo, 2009-2010 Chevrolet Aveo5, 2009-2010 Pontiac G3, and 2009 Pontiac G3 Wave (all L4-1.6L). This module delivers pressurized fuel and includes the components needed to install it right out of the box.

Flow & pressure: rated up to 55 U.S. gallons per hour with a maximum of 58 psi on 12 volts DC.
Connections: strainer-type inlet and a quick-connect outlet measuring 0.3125 in. outside diameter.
Tested: checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing; built to meet or exceed OEM specifications.
Complete assembly: supplied as a drop-in replacement with the necessary components included. Country of origin: Thailand.

Signs the original module may need replacing include hard starting, sputtering or hesitation under load, a whine from the fuel tank, or an engine that cranks but won't start. If a failed fuel pump module is the cause, this unit replaces it.

Interchange: 323-00733
MU2090 · E4003M · MO440 · P77045M · FG1309 · 95947690 · 96802748 · SP6667M · USEP4003M · 32300733

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

MU2090, E4003M, MO440, P77045M, FG1309, 95947690, 96802748, 323-00733, SP6667M, USEP4003M

Frequently Asked Questions

What vehicles does the Agility 4010713 fuel pump module fit?

It fits the 2009-2011 Chevrolet Aveo, 2009-2010 Chevrolet Aveo5, 2009-2010 Pontiac G3, and 2009 Pontiac G3 Wave, all with the L4-1.6L engine. Check the Buyer's Guide tab to confirm your vehicle.

What are the flow and pressure ratings?

The module is rated for up to 55 U.S. gallons per hour of flow and a maximum of 58 psi, operating on 12 volts DC.

What type of inlet and outlet does it use?

It has a strainer-type inlet and a quick-connect outlet with a 0.3125 in. outside diameter.

Is this a complete drop-in assembly?

Yes. It is supplied as a drop-in replacement with the necessary components included, so it installs right out of the box on the listed applications.

What are common signs this fuel pump module may need replacing?

Hard starting, sputtering or hesitation under load, a whining noise from the fuel tank, or an engine that cranks but won't start. Diagnose the cause first, as these symptoms can have other sources.
