Fuel Pump Module for 2009-2014 Honda Fit - Agility 4010722

$86.99

Sold out

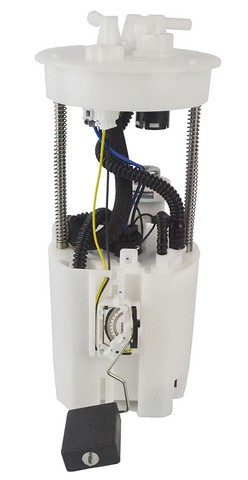

Agility Autoparts Fuel Pump Module Assembly 4010722

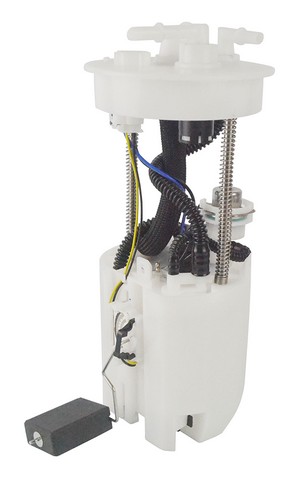

Agility Autoparts Fuel Pump Module Assembly 4010722 - view 2

Agility Autoparts Fuel Pump Module Assembly 4010722 - view 3

Agility Autoparts Fuel Pump Module Assembly 4010722 - view 4

Part number: 4010722

UPC: 887548189677

Condition: New

Weight: 1.70 LBS

Item Package Quantity: 1

$86.99

Current Stock:

Out of stock

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4010722

$86.99

Description

Keep fuel moving from the tank to the injectors with the Agility Auto Parts Fuel Pump Module Assembly 4010722, a drop-in replacement for the 2009-2014 Honda Fit (L4-1.5L). Agility offers a complete line of fuel module assemblies covering a wide variety of North American vehicle applications, and this unit installs right out of the box with the necessary components included.

Flow & pressure: rated for a maximum flow of 45 U.S. gallons per hour and a maximum pressure of 55 PSI, running on 12 volts DC.
Inlet & outlet: strainer-type inlet with a quick-connect outlet measuring 0.3125 in outside diameter.
Tested build: engineered and manufactured in a highly automated, dust-free environment and put through performance and reliability testing for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing.
Built to spec: made to meet or exceed OEM specifications as a drop-in replacement.

Country of origin: China.

Interchange: E8943M · P76773M · FG1280 · 17045TK6A00 · SP8050M · USEP8943M

Product information is for general reference and may contain errors. See our Disclaimer.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

E8943M, P76773M, FG1280, 17045TK6A00, SP8050M, USEP8943M

Buyer's Q&A

Frequently Asked Questions

What vehicle does the 4010722 fit?

It is a direct-fit replacement for the 2009-2014 Honda Fit with the L4-1.5L engine. The listed application uses one per vehicle.

Is this a complete fuel pump assembly?

Yes. Agility supplies this as a fuel pump assembly module that installs as a drop-in replacement out of the box with the necessary components included (Kit Included).

What are the flow and pressure ratings?

The module is rated for a maximum flow of 45 U.S. gallons per hour and a maximum pressure of 55 PSI, and it operates on 12 volts DC.

What kind of inlet and outlet does it use?

It has a strainer-type inlet and a quick-connect outlet with a 0.3125 in outside diameter.

What are signs this module may need replacing?

Hard starting, engine sputtering under load, a whining pump, or loss of fuel pressure can point to a failing module. Have the cause diagnosed, since these symptoms can have other sources.
