Fuel Pump Module for 2012-2017 Ford Focus - Agility 4010774

$124.99

Sold out

Agility Autoparts Fuel Pump Module Assembly 4010774

Part number: 4010774

UPC: 887548190192

Condition: New

Weight: 4.88 LBS

Item Package Quantity: 1

$124.99

Current Stock:

Out of stock

Have questions?

Ask an Expert

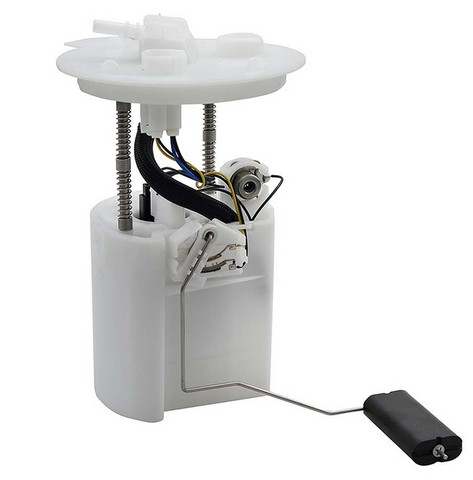

Agility Autoparts Fuel Pump Module Assembly P/N:4010774

$124.99

Description

Keep fuel moving to your engine with the Agility Auto Parts Fuel Pump Module Assembly 4010774, a direct-fit replacement for the 2012-2017 Ford Focus (L4-2.0L). Often searched as a 2012-2017 Ford Focus L4-2.0L fuel pump module, this in-tank unit draws fuel through its strainer inlet and feeds it toward the engine through a quick-connect outlet.

Inlet & outlet: Strainer-type inlet; quick-connect outlet measuring 0.3125 in outside diameter.
Rated performance: 12V DC operation, up to 60 U.S. gallons per hour of flow, and up to 90 PSI maximum pressure.
Tested: Checked for pressure characteristics, flow rates, electrostatic discharge, and given 100% leak testing; built to OE-level tolerances.
Drop-in: Ships as a kit with the necessary components right out of the box.

Manufactured in a highly automated, dust-free environment, this fuel pump assembly is designed as a drop-in replacement for the listed application. If a failing pump is the cause of hard starting, sputtering or stalling, loss of power under load, or a whine from the tank, replacing the module addresses it. Country of origin: Thailand.

Interchange: 323-02040 · PFS-1092 · PFS-609
E2592M · MO555 · P76863M · FG1532 · BV6Z9H307H · BV6Z9H307P · BV6Z9H307U · PFS1092 · PFS609 · SP2516M · USEP2592M · 32302040

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

This part cross-references / interchanges with the following part numbers:

E2592M, MO555, P76863M, FG1532, BV6Z9H307H, BV6Z9H307P, BV6Z9H307U, PFS1092, PFS609, 323-02040, PFS-1092, PFS-609, SP2516M, USEP2592M

Buyer's Q&A

Frequently Asked Questions

Does this fuel pump module fit my 2012-2017 Ford Focus 2.0L?

Yes—it's a direct-fit replacement for the 2012-2017 Ford Focus with the L4-2.0L engine. Check the "Vehicles it fits" section to confirm your specific vehicle.

Is this the same as a fuel pump driver module or control module?

No. This is the in-tank fuel pump module assembly, not the separate electronic driver/control module that regulates pump voltage.

What are the flow and pressure ratings?

It runs on 12V DC with a maximum flow rating of 60 U.S. gallons per hour and a maximum pressure of 90 PSI. The outlet is a quick-connect type, 0.3125 in outside diameter.

What comes with this assembly?

It's a drop-in kit that ships with the necessary components right out of the box. Confirm any tank-specific hardware for your application before installing.

What are signs my fuel pump module may need replacing?

Hard starting, engine sputtering or stalling, loss of power under load, or a whine from the tank can point to a failing pump. Diagnose the cause before replacing.
