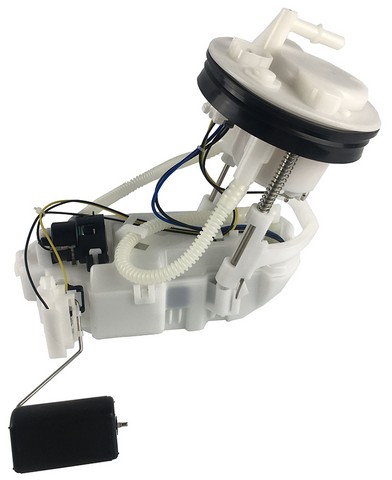

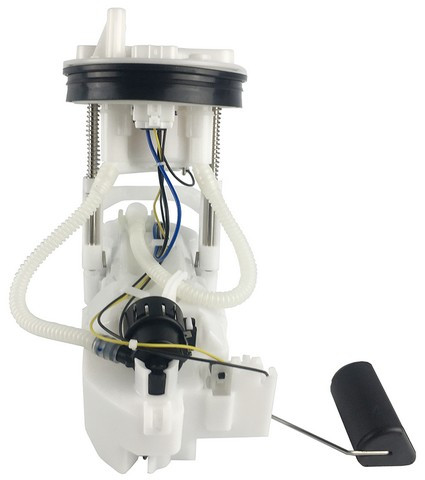

Agility 4010790 fuel pump module for the 2002-2004 Acura RSX 4-cylinder 2.0L moves fuel from the tank to the engine. Also listed as a fuel pump assembly, it meets or exceeds all OEM specifications.
- Engineered and manufactured in a highly automated, dust-free environment
- Tested for pressure characteristics, flowrates and electrostatic discharge
- 100% leak testing on every module
- Strainer on the inlet and a quick-connect fuel outlet
Quick facts
- Part: Agility 4010790 fuel pump module
- Also called: fuel pump assembly
- Fits: 2002-2004 Acura RSX 4-cylinder 2.0L
- Condition: New
A car that cranks but will not start, stalls, hesitates under load or sets a fuel-related warning light can mean the fuel pump module is worn, though a bad fuel pump relay or a blown fuse can be behind the same signs, so find the cause before replacing the module.
Fits
It is a direct-fit replacement for the 2002-2004 Acura RSX 4-cylinder 2.0L, which takes one module, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet type: strainer
- Outlet type: quick connect
- Outlet outside diameter: 0.375 in
Build and materials
- Maximum flow: 50 US gallons per hour
- Maximum pressure: 80 psi
- Voltage: 12 V DC
- Supplied as a kit
- Condition: New
- Country of origin: Thailand
In the box
One fuel pump module supplied as a kit.
Installation notes
- Ready to install out of the box, with all the necessary components included.
Interchange: 17045S6MA00 · E8713M · P77208M · SP8043M · USEP8713M
This part cross-references / interchanges with the following part numbers:
17045S6MA00, E8713M, P77208M, SP8043M, USEP8713M
Frequently Asked Questions
Does the Agility 4010790 fuel pump module fit the 2002-2004 Acura RSX 4-cylinder 2.0L?
Yes. Agility 4010790 is a direct-fit fuel pump module for the 2002-2004 Acura RSX 4-cylinder 2.0L, which takes one.
Is the Agility 4010790 fuel pump module sold as a kit?
Yes. Agility 4010790 is supplied as a kit with the necessary components included, and this listing is one fuel pump module.
What flow rate and pressure is this 12-volt fuel pump module rated for?
This fuel pump module is rated for a maximum flow of 50 US gallons per hour and a maximum pressure of 80 psi on 12 V DC.
What kind of outlet does this fuel pump module have?
It has a quick-connect outlet with a 0.375 in outside diameter, and the inlet uses a strainer.
Does Agility 4010790 interchange with E8713M?
Yes. E8713M is one of the interchange numbers for this fuel pump module, along with 17045S6MA00, P77208M, SP8043M and USEP8713M.
