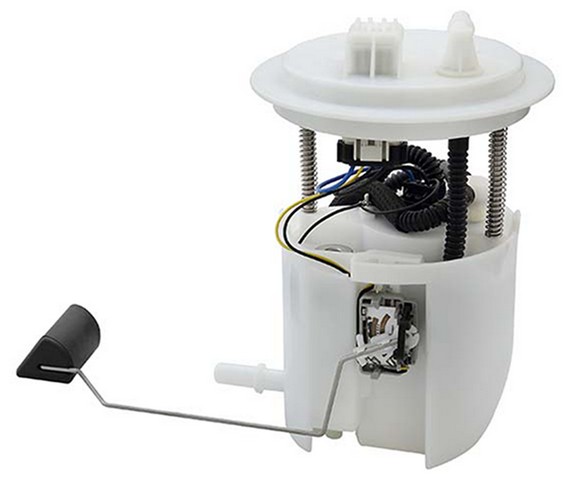

Keep fuel moving from the tank to the engine with the Agility Auto Parts Fuel Pump Module Assembly 4010953. It's a direct-fit replacement for the 2010-2018 Jeep Wrangler — the V6-3.6L (2012-2018) and V6-3.8L (2010-2011) — as well as the 2018 Jeep Wrangler JK V6-3.6L. This in-tank module houses the electric fuel pump and delivery components that supply pressurized fuel to the injection system.
Flow & pressure: rated up to 57 U.S. gallons per hour with a maximum pressure of 64 PSI, running on 12 volts DC.
Connections: strainer-type inlet and a Quick Connect outlet with a 0.375 in outside diameter.
Drop-in kit: ships as a complete assembly with the necessary components included, ready to install out of the box.
Built and tested: checked for pressure and flow rate, screened for electrostatic discharge, and 100% leak-tested to OEM-level standards.
If a worn or failed fuel pump module is behind your Jeep's hard starting, stalling, or loss of fuel delivery, this assembly replaces it. Country of origin: China.
What vehicles does the 4010953 fuel pump module fit?
It's a direct-fit replacement for the 2010-2018 Jeep Wrangler (V6-3.6L for 2012-2018, V6-3.8L for 2010-2011) and the 2018 Jeep Wrangler JK V6-3.6L. Check the Buyer's Guide tab to confirm your Jeep.
Is this a complete drop-in fuel pump assembly?
Yes. It ships as a complete module with the necessary components included, so it installs as a drop-in replacement right out of the box.
What are the flow and pressure ratings?
The module is rated up to 57 U.S. gallons per hour with a maximum pressure of 64 PSI, and it operates on 12 volts DC.
What type of inlet and outlet does it use?
It has a strainer-type inlet and a Quick Connect outlet with a 0.375 in outside diameter.
What are signs the fuel pump module may need replacing?
Common signs include hard starting, engine stalling, sputtering under load, or a loss of fuel delivery. Diagnose the cause first; if the module is at fault, this assembly replaces it.
