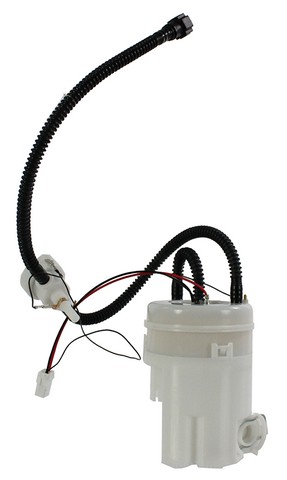

Agility Autoparts Fuel Pump Module Assembly 4011340

Agility Autoparts Fuel Pump Module Assembly P/N:4011340

Be the first to review this product

$71.99

MPN: 4011340

UPC: 887548380647

Item Package Quantity: 1

Current Stock:

Quantity:

Adding to cart… The item has been added

Have questions?

Ask an Expert

Agility Autoparts Fuel Pump Module Assembly P/N:4011340

$71.99

Description

Keep fuel moving to the engine with the Agility Auto Parts Fuel Pump Module Assembly (4011340). This complete in-tank module draws fuel from the tank and delivers it under pressure to the fuel system, and it drops in as a direct-fit replacement for the 2005-2007 Land Rover LR3 (V6-4.0L), the 2005-2009 Land Rover LR3 (V8-4.4L), and the 2006-2009 Land Rover Range Rover Sport (V8-4.4L).

Rated output: a maximum flow rating of 85 U.S. gallons per hour and a maximum pressure of 70 PSI, running on 12 volts DC.
Connections: strainer-style inlet with a female quick-connect outlet measuring 0.3125 in outside diameter.
Tested: checked for pressure characteristics, flow rates, electrostatic discharge, and 100% leak testing; meets or exceeds OEM specifications.
Ready to install: a drop-in replacement that includes the necessary components right out of the box.

Signs the original module may need replacing include long crank times, sputtering or stalling under load, a no-start condition, or a whine from the fuel tank. If a failed fuel pump module is the cause, this assembly replaces it. Made in Thailand.

Interchange: E8858M · FG1637 · WGS500051 · SP5096M · USEP8858M

Manufacturer's Description

Product Specs

Buyer's Guide

Interchange Part Numbers

This part cross-references / interchanges with the following part numbers:

E8858M, FG1637, WGS500051, SP5096M, USEP8858M

Frequently Asked Questions

What vehicles does this fuel pump module fit?

It is a direct-fit replacement for the 2005-2007 Land Rover LR3 (V6-4.0L), 2005-2009 Land Rover LR3 (V8-4.4L), and 2006-2009 Land Rover Range Rover Sport (V8-4.4L). See the Buyer's Guide tab to confirm your vehicle.

What are the flow and pressure ratings?

The module carries a maximum flow rating of 85 U.S. gallons per hour and a maximum pressure of 70 PSI, and it operates on 12 volts DC.

What type of inlet and outlet does it have?

It uses a strainer-style inlet and a female quick-connect outlet with a 0.3125 in outside diameter.

Do I need any extra parts to install it?

Agility lists this as a drop-in module that includes the necessary components out of the box. Consult the vehicle service information for the correct procedure and any fasteners.

What are signs my fuel pump module may be failing?

Common signs include extended cranking, sputtering or stalling under load, a no-start condition, or a whine from the tank. Diagnose the cause before replacing, as these symptoms can have other sources.
