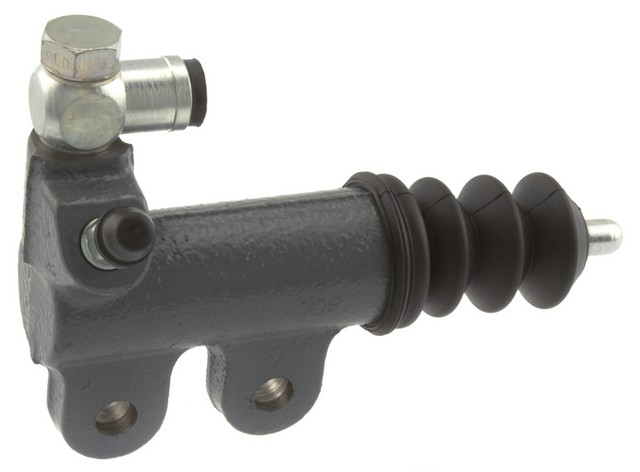

Keep your hydraulic clutch actuating smoothly with the AISIN Clutch Slave Cylinder (CRM020), a direct-fit replacement for the 1997-2002 Mitsubishi Mirage with the L4-1.5L or L4-1.8L engine. It receives hydraulic pressure from the clutch master cylinder and extends its piston and push rod against the release fork, disengaging the clutch when you press the pedal.
Signs the original may need replacing include a soft or sinking clutch pedal, difficulty shifting, or hydraulic fluid seepage at the cylinder. If a failed slave cylinder is the cause, this unit replaces it; diagnose the hydraulic system before installing.
Interchange: 072-9239
0729239 · 386446 · 13619 · CS650120 · SC593 · LSC321 · MD770676 · 360073 · SH6208 · 5575190
This part cross-references / interchanges with the following part numbers:
What vehicles does the AISIN CRM020 fit?
It is a direct-fit replacement for the 1997-2002 Mitsubishi Mirage equipped with the L4-1.5L or L4-1.8L engine. Confirm your vehicle in the Buyer's Guide tab before ordering.
What does a clutch slave cylinder do?
It receives hydraulic pressure from the clutch master cylinder and moves its piston and push rod against the release fork, disengaging the clutch when you press the pedal.
Is a push rod included?
Yes. Per the catalog, the push rod is included with this slave cylinder. It has two mounting holes and a bolt-on mounting type.
Does it come pre-filled with fluid?
No. This unit ships without fluid, so it must be filled and the hydraulic system bled per the vehicle service procedure after installation.
What are the bore and inlet dimensions?
The bore diameter is 0.81 in (20.574 mm) and the inlet diameter is 0.47 in. The body is cast iron with anodized, Kanigen-plated surfaces and ethylene propylene seals.
