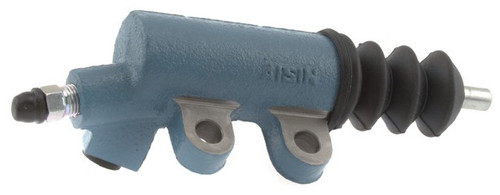

Restore a firm clutch pedal and clean gear engagement with the AISIN Clutch Slave Cylinder CRT-099. This hydraulic slave cylinder uses fluid pressure from the clutch master cylinder to move the release fork, disengaging the clutch each time you press the pedal. It drops in as a direct-fit replacement for the 1982-1985 Toyota Celica (L6-2.8L), 1984-1987 Toyota Cressida (L6-2.8L), 1984-1985 Toyota Pickup (L4-2.4L), and 1989-1992 Toyota Supra (L6-3.0L). If a leaking or worn slave cylinder is behind a soft pedal, poor release, or trouble shifting, this replaces it.
OE-quality build: Anodized and Kanigen-plated hydraulic cylinder body with precision honing monitored under OE quality-control standards, strengthening surfaces for smooth piston operation and corrosion resistance.
Cast iron body: Durable cast iron construction with high-heat ethylene propylene seals.
Bolt-on fitment: Two mounting holes, 0.86 in (21.844 mm) bore, and a 0.39 in inlet.
Push rod included: Ships with the push rod; not pre-filled with fluid.
It uses hydraulic pressure from the clutch master cylinder to move the release fork, disengaging the clutch when you press the pedal so you can shift gears.
Which vehicles does the CRT-099 fit?
It's a direct-fit replacement for the 1982-1985 Toyota Celica (L6-2.8L), 1984-1987 Toyota Cressida (L6-2.8L), 1984-1985 Toyota Pickup (L4-2.4L), and 1989-1992 Toyota Supra (L6-3.0L).
Does it include a push rod?
Yes. The push rod is included. Note that the cylinder is not pre-filled with fluid, so it must be filled and bled during installation.
What are the bore and inlet dimensions?
The bore diameter is 0.86 in (21.844 mm) and the inlet diameter is 0.39 in. It has two mounting holes and installs bolt-on.
What are signs my slave cylinder may need replacing?
A soft or sinking clutch pedal, difficulty shifting, poor clutch release, or visible fluid leakage at the cylinder are common signs. Diagnose the cause before replacing.
