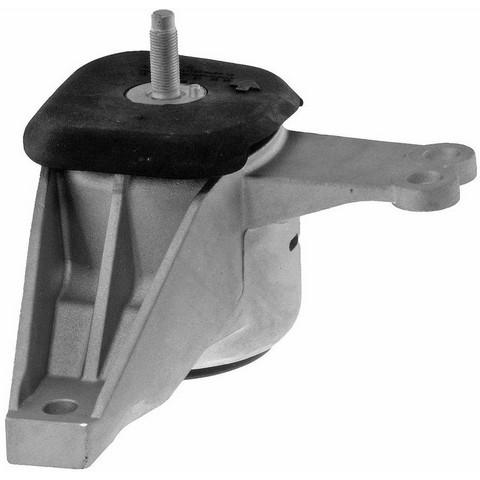

Anchor 10305 right engine mount for the 2022-2026 Hyundai Tucson 4-cylinder 2.5L and other vehicles supports the engine and dampens vibration. Like other Anchor engine mounts, its rubber is made to a hardness (durometer) set by the vehicle application.
- Hydraulic type, filled with special hydraulic fluid to dampen noise and vibration
- Natural and Styrene Butadiene rubber that resists abrasion and stays stable as it ages
- Chemlock® bonding agent for the rubber-to-metal bond
- Cast aluminum mount with an uncoated finish and a rubber bushing
- Engineered with a CAD/CAM process for consistent quality
Quick facts
- Part: Anchor 10305 engine mount
- Fits: 2022-2026 Hyundai Tucson 4-cylinder 2.5L and other vehicles

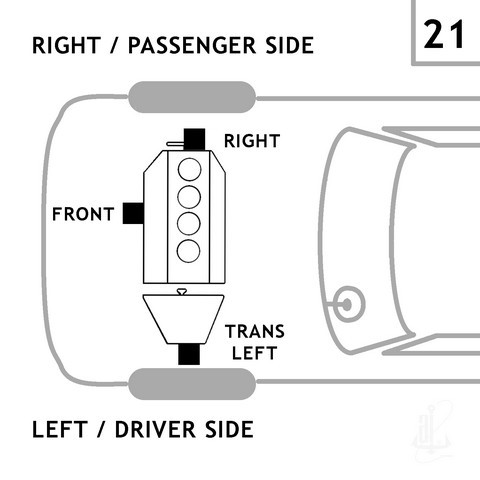

- Position: Right
- Material: Aluminum
- Condition: New
A worn mount can show up as a clunk when accelerating, decelerating or shifting, as vibration at idle, or as cracked or separated rubber. Those signs alone don't prove this mount is at fault, since a worn mount elsewhere on the powertrain can feel much the same.
Fits
It is a direct-fit replacement for the 2022-2026 Hyundai Tucson 4-cylinder 2.5L, the 2023-2026 Kia Sportage 4-cylinder 2.5L and the 2022-2026 Hyundai Santa Cruz 4-cylinder 2.5L. This listing is one right-side mount, and the right position takes one; a mount for the other side is a separate part.
Specifications
Fit and size
- Position: Right
- Quantity per vehicle: 1
- Mounting hole diameter: 14.5 mm (0.57 in)
- Mounting holes: 4
- Stud thread: M12-1.25, metric
- Studs: 1
Build and materials
- Type: Hydraulic
- Construction: Cast
- Mount material: Aluminum
- Bushing material: Rubber
- Finish: Uncoated
- Condition: New
- Warranty: Anchor 12-month warranty
- Country of origin: China
In the box
One right engine mount. Mounting hardware, a mounting bracket and a heat shield are not included, so plan on new bolts.
Interchange: 21810N9540
Frequently Asked Questions
Is the Anchor 10305 an engine mount for the 2022-2026 Hyundai Tucson 4-cylinder 2.5L?
Yes. Anchor 10305 is a right engine mount for the 2022-2026 Hyundai Tucson 4-cylinder 2.5L, and this listing is a single mount.
Is this the right-side engine mount for the 2023-2026 Kia Sportage 4-cylinder 2.5L?
Yes. Anchor 10305 is a right-side mount for the 2023-2026 Kia Sportage 4-cylinder 2.5L, and the other side takes its own separate mount.
Is this Anchor motor mount hydraulic or solid rubber?
It is a hydraulic type, filled with special hydraulic fluid to dampen noise and vibration. The mount body is cast aluminum, and the bushing is rubber.
Do bolts or a bracket come with the Anchor 10305?
No. Mounting hardware, a mounting bracket and a heat shield are not included with this engine mount, so plan on new bolts; the mount has one M12-1.25 metric stud.
Does Anchor 10305 replace number 21810N9540?
Yes, Anchor 10305 is listed as a replacement for 21810N9540, so both numbers point to this right engine mount.
