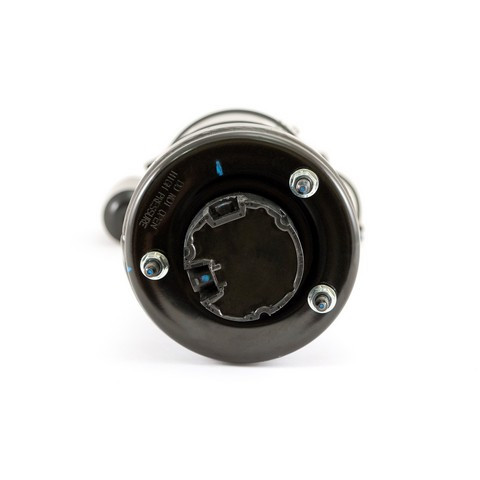

Arnott Industries AS-2294 front right air suspension strut for the 2008-2009 Mercedes-Benz E300 and other vehicles combines an air spring and a hydraulic damper in one assembly. It is remanufactured and tested in the USA.
- Continental ContiTech air spring bladder
- Gas-charged hydraulic internal damper with adjustable damping
- Progressive spring rate with air adjustment
- Heavy-duty crimping rings on the air spring bladder
- Stud upper mount and clevis lower mount
Quick facts
- Part: Arnott Industries AS-2294 air suspension strut
- Fits: 2008-2009 Mercedes-Benz E300 and other vehicles
- Position: Front right
- Condition: Remanufactured
A worn air strut can show up as a car that sits low at one corner, a bouncy or rough ride, or a leaking air spring bladder. A sagging corner does not prove the strut itself is at fault, since a worn air line or compressor can also let the car sit low.
Fits
The 2006-2009 Mercedes-Benz E350, the 2007-2009 Mercedes-Benz E550 and more vehicles all fit this strut, and it is for vehicles with 4MATIC. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one strut, and the front right takes one; the front left is a separate part ordered separately, and for best results the two sides are changed as a pair.
Specifications
Fit and size
- Position: Front right
- Quantity per vehicle: 1 for this position
- Upper mount type: Stud
- Lower mount type: Clevis
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
Build and materials
- Internal damper type: Hydraulic
- Spring rate type: Progressive
- Gas charged: Yes
- Air adjustable: Yes
- Condition: Remanufactured
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, spring isolators, an upper mounting isolator and a boot. The spring seat, bearing plate and lower mounting isolator are not included.
Interchange: 44-181680
2113202813 · 2113209613 · 211320961380
This part cross-references / interchanges with the following part numbers:
2113202813, 2113209613, 211320961380, 44-181680
Frequently Asked Questions
Does the Arnott Industries AS-2294 fit the 2008-2009 Mercedes-Benz E300 with 4MATIC?
Yes. Arnott Industries AS-2294 is a front right air suspension strut for the 2008-2009 Mercedes-Benz E300, and it is made for vehicles with 4MATIC.
Does the AS-2294 air strut come with the spring seat and bearing plate?
No. Arnott Industries AS-2294 leaves out the spring seat, bearing plate and lower mounting isolator. It includes mounting hardware, spring isolators, an upper mounting isolator and a boot.
What kind of damper does this front right air strut have?
The internal damper is hydraulic and gas charged, with adjustable damping and a progressive spring rate. The air spring bladder is a Continental ContiTech part.
What mounts does this air suspension strut use?
The upper mount is a stud and the lower mount is a clevis. The body end measuring point is the center eye, and the rod end measuring point is the shoulder of the stud.
How can I tell if a front right air strut is worn?
In normal driving, a sagging corner, a bouncy ride or a noise from the front right can be signs. A shop can inspect the air spring bladder and damper to find the cause.
