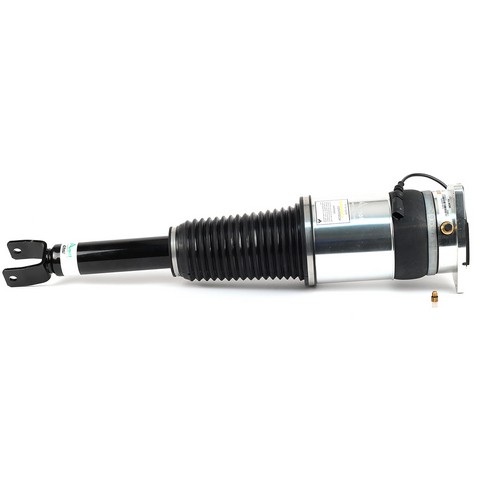

Arnott Industries AS-3030 rear right air suspension strut for the 2004-2010 Audi A8 Quattro supports the car on an air sleeve and damps wheel movement. This new, complete assembly pairs the air sleeve with a hydraulic damper.
- Converts adaptive damping to passive damping
- Custom-designed shock absorber, tuned for a comfortable yet responsive ride
- Tier 1 components: O-rings, bump stop, heavy-duty crimping rings, airline fitting and connector valve
- Multi-ply cross-axis air sleeve, protected by an aluminum can and dust cover
- CNC-machined top mount made from aircraft-quality aluminum
Quick facts
- Part: Arnott Industries AS-3030 air suspension strut
- Fits: 2004-2010 Audi A8 Quattro
- Position: Rear right
- Condition: New
A sagging corner, a bouncy or harsh ride, an air leak or an adaptive-damping fault can mean a worn strut. The air compressor, the air lines or the level sensors can be behind these signs too, so find the cause before buying. Replace the pair together for best results; this listing is one strut.
Fits
It is a direct-fit replacement for the 2004-2010 Audi A8 Quattro. The car takes one on each side of the rear axle, so the rear left strut is ordered separately.
Specifications
Fit and size
- Position: Rear right
- Quantity per application: 1
- Upper mount type: Stud
- Lower mount type: Clevis
- Body end measuring point: Center eye
- Shock absorber rod end measuring point: Shoulder of stud
Build and materials
- Internal damper type: Hydraulic
- Spring rate type: Progressive
- Air adjustable: Yes
- Shock spring assisted: Yes
- Adjustable compression: No
- Condition: New
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, spring isolators, an upper mounting isolator and a boot. The spring seat and the lower mounting isolator are not included.
Installation notes
- Comes pre-assembled.
- Detailed installation instructions are available.
Interchange: 45-247193
4E0616002D · 4E0616002E · 4E0616002G · 4E0616002K · 4E0616002M · 4E0616002N · 4E0616002Q · 4E0616002R
This part cross-references / interchanges with the following part numbers:
45-247193, 4E0616002D, 4E0616002E, 4E0616002G, 4E0616002K, 4E0616002M, 4E0616002N, 4E0616002Q, 4E0616002R
Frequently Asked Questions
Is the Arnott Industries AS-3030 the right strut for the 2004-2010 Audi A8 Quattro?
Yes, the Arnott Industries AS-3030 is the rear right air suspension strut for the 2004-2010 Audi A8 Quattro; the rear left side is a separate part.
Does the AS-3030 air suspension strut come with mounting hardware?
Yes, this air suspension strut comes with mounting hardware, spring isolators, an upper mounting isolator and a boot; the spring seat and lower mounting isolator are not included.
What kind of upper and lower mounts does this rear right air suspension strut have?
The Arnott Industries AS-3030 has a stud upper mount and a clevis lower mount. Its body end measures at a center eye, and its spring rate is progressive.
Can a leaking air suspension strut make the rear corner sag?
Yes, a leaking air sleeve or airline fitting can let that corner sit low, and a worn damper can make the ride bouncy or harsh. A shop can test the air system.
Does the AS-3030 convert the adaptive damping to passive?
Yes, the Arnott Industries AS-3030 converts adaptive damping to passive, and it comes pre-assembled with detailed installation instructions available.
