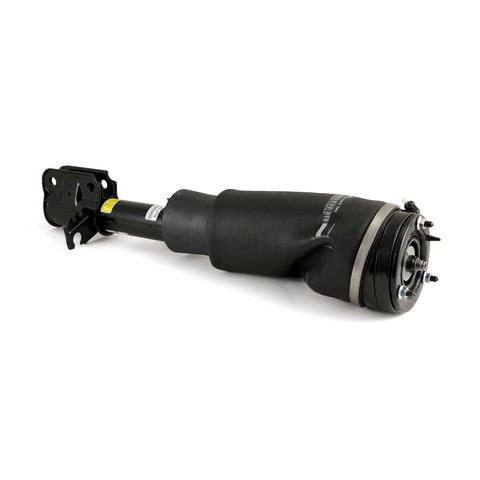

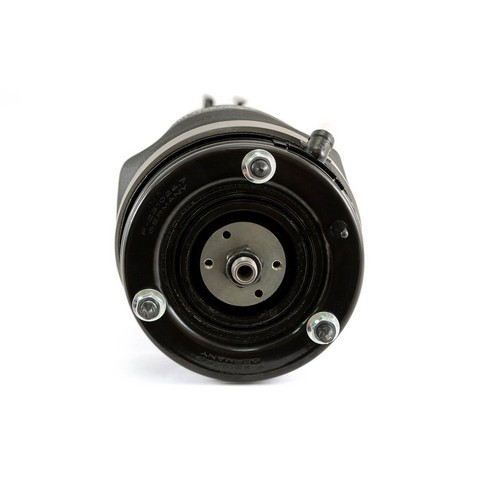

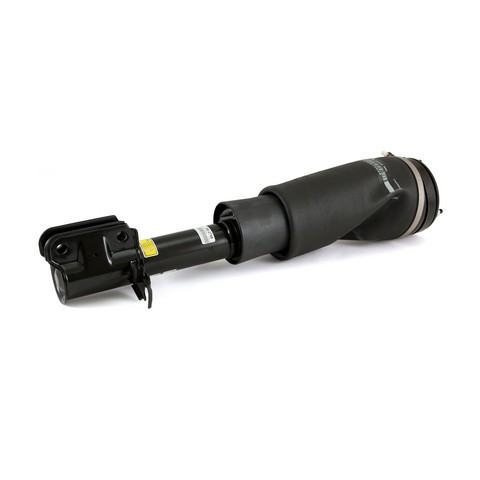

Arnott Industries AS-2758 front left air suspension strut for the 2010-2012 Land Rover Range Rover supports the front left corner and damps its movement. This remanufactured strut is built with OE-quality components, cleaned, tested and repainted, then rebuilt with a heavy-duty rubber air spring bladder.
- Vibracoustic air sleeve for enhanced strength and extended service life
- Heavy-duty crimping rings, an air fitting and O-rings in the rebuild
- Maintains factory damping functionality
- Hydraulic, gas-charged damper with adjustable damping
- Progressive spring rate with an air-adjustable design
Quick facts
- Part: Arnott Industries AS-2758 air suspension strut
- Fits: 2010-2012 Land Rover Range Rover
- Position: Front left
- Condition: Remanufactured
A low front left corner, a bouncy ride or fluid on the damper body can mean the strut is worn. Before replacing it, check the air spring bladder and strut body for cracks or wetness with the engine off; other air suspension parts can also leave a corner low. Replace the front struts as a pair for best results; this listing is one strut.
Fits
This strut fits the 2010-2012 Land Rover Range Rover, one on each side of the front axle. The front right is a separate part.
Specifications
Fit and size
- Position: Front left
- Quantity per application: 1
- Upper mount type: Stud
- Lower mount type: Bracket
- Body end measuring point: Center eye
- Rod end measuring point: Shoulder of stud
Build and materials
- Condition: Remanufactured
- Internal damper type: Hydraulic, gas charged
- Spring rate: Progressive
- Adjustable damping: Yes
- Air adjustable: Yes
- Country of origin: United States
In the box
One air suspension strut with mounting hardware, a bearing plate, an upper mounting isolator, spring isolators and a boot. The spring seat and the lower mounting isolator are not included.
Installation notes
- Detailed installation instructions are available.
Interchange: 45-240690
LR012885 · LR012886 · LR032567
This part cross-references / interchanges with the following part numbers:
45-240690, LR012885, LR012886, LR032567
