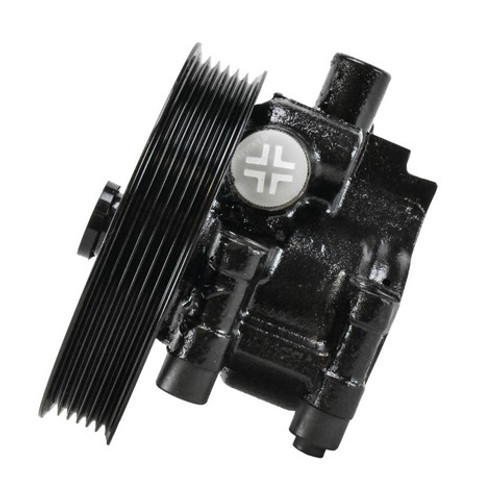

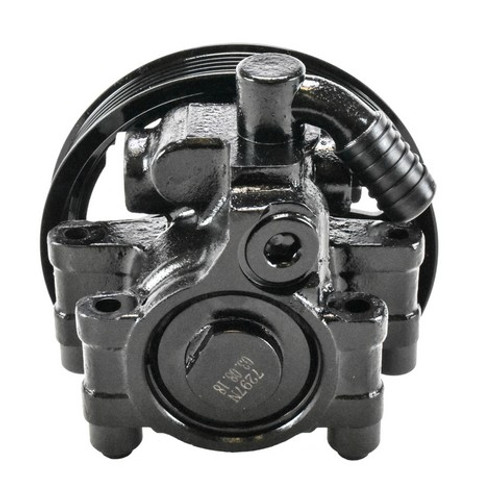

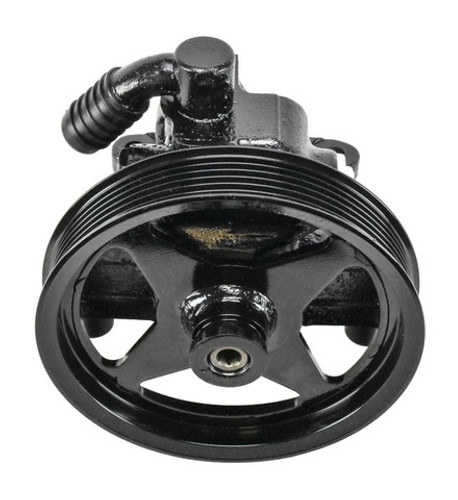

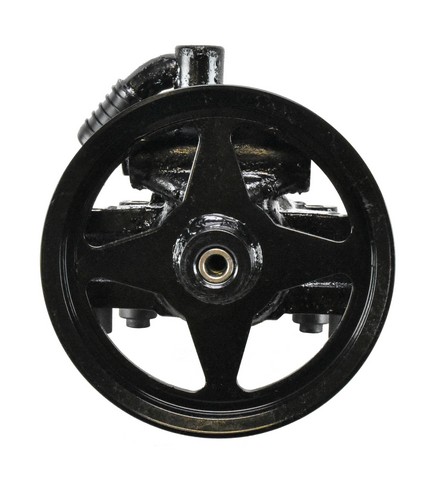

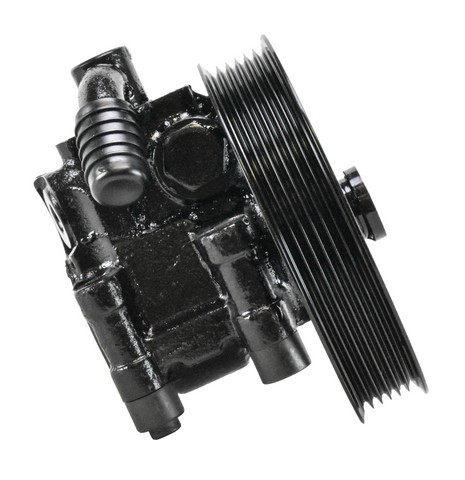

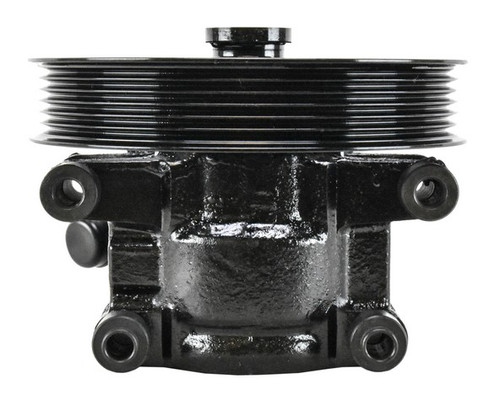

Atlantic Automotive Engineering 7297N power steering pump for the 2004-2008 Ford F-150 and other vehicles supplies hydraulic pressure to the steering system for power assist. This new pump is a direct replacement for failed OEM units and is made with OE quality components. Its performance, fit and function are engineered to match or beat OE specifications.
- 100% hydraulically tested under load in the USA
- Pulley included; the reservoir is not
- Return pipe adapter included
- Upgraded shaft is heat treated to prevent premature failure
- Cast iron housing
Quick facts
- Part: Atlantic Automotive Engineering 7297N power steering pump
- Fits: 2004-2008 Ford F-150 and other vehicles
- Material: Cast iron housing
- Condition: New
A worn pump can show up as a whining or groaning noise when you turn the wheel, heavy steering, or fluid leaking at the pump. Before you replace the pump, rule out low fluid, a leaking hose or a restricted line, because each of those can produce noise or heavy steering on its own.
Fits
This pump is listed for a wide range of Ford and Lincoln models, including the 2003-2009 Ford Expedition, and it is also a Lincoln Navigator power steering pump for 2003-2009 models, and each vehicle takes one pump. If your vehicle is not named here, look it up in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Inlet diameter: 16.0 mm
- Outlet diameter: 16.0 mm
- Inlet attachment: clamp-on
- Outlet attachment: O-ring
- Hose port type: hose barb
- Pulley attachment: press-on
- Reservoir: not included
Build and materials
- Type: hydraulic
- Housing material: cast iron
- Shaft: upgraded, heat treated
- Grade: standard replacement
- Condition: new
- Country of origin: China
In the box
One power steering pump with its pulley and a return pipe adapter. The reservoir, reservoir cap, filter and mounting hardware are not included; plan on new mounting hardware, as the old pieces may not be reusable.
Installation notes
- Flush and fill the steering system with an OE-approved power steering fluid.
- Replacing the steering fluid reservoir at the same time is highly recommended, because a clogged reservoir can starve the replacement pump.
Frequently Asked Questions
Does this Ford F-150 power steering pump fit a 2004-2008 model?
Yes. Atlantic Automotive Engineering 7297N is listed for the 2004-2008 Ford F-150, and the truck takes one pump.
Is this the Ford Expedition power steering pump for 2003-2009 models?
Yes. The 7297N is listed for the 2003-2009 Ford Expedition, and each one takes a single pump.
Does this power steering pump come with the pulley and reservoir?
Yes, the pulley and a return pipe adapter are included, but the reservoir, reservoir cap, filter and mounting hardware are not.
What size are the inlet and outlet ports on this power steering pump?
Both the inlet and the outlet are 16.0 mm. The inlet is clamp-on, the outlet attaches with an O-ring, and the hose port type is hose barb.
What should I do to the steering system when installing this power steering pump?
Flush and fill it with an OE-approved power steering fluid. Replacing the steering fluid reservoir too is highly recommended, since a clogged reservoir can starve the new pump.
