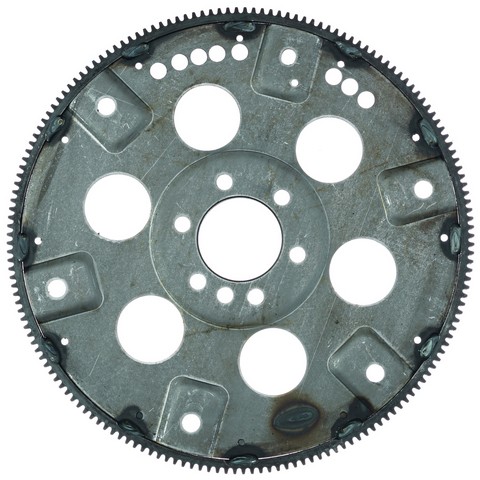

ATP Z-128 auto trans flexplate for the 1990 Chevrolet C1500 and other vehicles connects the engine to the transmission's torque converter.
- Steel plate with correctly spaced bolt holes for the torque converter
- Ring gear with 168 teeth that engage the starter
- Flexes to allow for torque converter expansion as engine RPM increases
Quick facts
- Part: ATP Z-128 auto trans flexplate
- Fits: the 1990 Chevrolet C1500 and other vehicles
- Material: Steel
- Condition: New
Constant expansion and contraction over time can crack or shear a flexplate. A cracked plate, or noise and vibration from the bellhousing area, can mean the flexplate is worn, though a faulty torque converter or starter can be behind similar symptoms, so find the cause first. A broken flexplate cannot be repaired and has to be replaced.
Fits
This flexplate fits the 1970-1976 Chevrolet Impala and the 1988-1990 Chevrolet G30 as well as the 1990 Chevrolet C1500, across many Chevrolet and GMC models. The 1970-1976 Chevrolet Impala takes one flexplate, and this listing is one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Diameter: 358.775 mm
- Ring gear teeth: 168
Build and materials
- Material: Steel
- Condition: New
- Country of origin: Mexico
Interchange: AA-G117 · AA-G119 · FRA-141
FW95862 · FW95883 · FA38 · XF36 · GM117 · GM119 · 4305 · 14001992 · 336717 · 409458 · 6005060 · FY35 · 4161022 · 4161024 · V506
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
FW95862, FW95883, FA38, XF36, GM117, GM119, 4305, 14001992, 336717, 409458, AA-G117, AA-G119, 6005060, FY35, FRA141, FRA-141, 4161022, 4161024, V506
Frequently Asked Questions
Does the ATP Z-128 flexplate fit the 1990 Chevrolet C1500?
Yes. ATP Z-128 fits the 1990 Chevrolet C1500. If your car is a different Chevrolet or GMC, look it up in the "Vehicles it fits" section on this page.
Is the ATP Z-128 flexplate right for the 1988-1990 Chevrolet G30?
Yes. The 1988-1990 Chevrolet G30 is on the fitment list for ATP Z-128, and it takes one flexplate.
How many teeth does the ATP Z-128 flexplate ring gear have?
The ATP Z-128 ring gear has 168 teeth for the starter, and the plate measures 358.775 mm in diameter.
Can a cracked or sheared flexplate be repaired?
No. A broken flexplate cannot be repaired and has to be replaced, and a damaged one can lead to serious, costly damage.
Does the ATP Z-128 flexplate replace FW95862?
Yes. FW95862 is one of the numbers ATP Z-128 replaces; the rest are on the Interchange line of this page.
